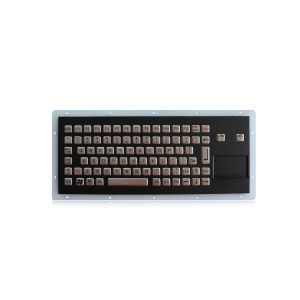

Stainless Steel Industrial Black Keyboard With Touchpad IP65 Waterproof Panel Mount

    Buy cheap Stainless Steel Industrial Black Keyboard With Touchpad IP65 Waterproof Panel Mount from wholesalers

    Buy cheap Stainless Steel Industrial Black Keyboard With Touchpad IP65 Waterproof Panel Mount from wholesalers
    • Buy cheap Stainless Steel Industrial Black Keyboard With Touchpad IP65 Waterproof Panel Mount from wholesalers
    • Buy cheap Stainless Steel Industrial Black Keyboard With Touchpad IP65 Waterproof Panel Mount from wholesalers

    Stainless Steel Industrial Black Keyboard With Touchpad IP65 Waterproof Panel Mount

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-B255TP-FN-UT-BT-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : To be quoted
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Supply Ability : 3000psc/month
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    • Product Details
    • Company Profile

    Stainless Steel Industrial Black Keyboard With Touchpad IP65 Waterproof Panel Mount


    IP65 Waterproof Panel Mount Stainless Steel Keyboard with Touchpad


    MODEL NO.: K-TEK-B255TP-BT-UT-DWP


    METAL INDUSTRIAL KEYBOARD DESCRIPTION:

    85 Keys (including 2 mouse buttons) Compact Format IP65 dynamic Vandal Proof Stainless Steel industrial Keyboard with with IP65 rugged and tough touchpad module for fast and accurate position with extremely smooth operation, industrial metal PCB with gold-on-gold key switch technology with short stroke (0.45±0.05mm) with extremely good tactile feeling for stable and accurate input without any noise, 2 mouse buttons designed for right & left clicking and scrolling up and down, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation, stainless steel rear plate with mounting holes for rear panel mounting solution, one-piece water tight gasket for easy mounting & sealing tightly with cabinet.High quality black titanium electroplated on stainless steel surface, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.

    DIMENSIONS: 255.0mm x 105.0mm (front panel)


    MECHANICAL DATA
    Actuator/keys85 keys (including 2 mouse buttons)
    Key top styleNon-protuberant rectangular keys, laser engraved & etched legends on keys are available
    Key Size10.0mm x 10.0mm for normal keys, 10.0mm x 23.0mm for enter key, 10.0mm x 53.0mm for space bar
    Key travel0.45±0.05mm
    Actuation Force2.5N±0.2N for key 10.0mm x 10.0mm (pressure point ), 5.0N±0.4N for key 10.0mm x 23.0mm (pressure point)
    Front Plate1.5mm thickness super quality brushed stainless steel, with durable black titanium electroplated on the top stainless steel plate
    Back Plate1.5mm thickness super quality brushed stainless steel
    Switch lifemore than 1 million of operations
    Touch padsealed and ruggedized tough touchpad
    Touchpad coverComposite
    More than Lifetime 10 million strokes
    Mutual capacitance sensing
    X/Y axis location detection resolution40 Counts /mm
    X/Y position reportrelative
    Output (self-detectable depending on cable)PS2 or USB
    Tracking speedMaximum 1,016 m/sec
    Power supply voltage5VDC ± 0.25V
    Current rating (active mode)< 10 mA
    G.W.1.20KGs
    ELECTRICAL DATA
    Supply Voltage+5V DC ± 5%
    Current Rating50mA
    EMC StandardEN 55032:2015 EN 55035:2017
    Lifespan> 5 years
    Switch Contact MaterialGold-on-Gold key switch technology PCB
    InterfacePS2, USB available
    OSAll Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
    ENVIRONMENTAL ADAPTABILITY
    Operating temperature-20℃ to +65℃
    Storage temperature-30℃ to +75℃
    Operating RH30-90%
    Atmospheric pressure60-106Kpa
    Saline mist96 hours, IEC 60512-6
    Damp heat test at +40℃21 days, IEC 60512-6
    Dry heat test at +85℃10 days, IEC 60512-6
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection LevelIP65 dynamic (front panel)
    Vandal resistantIK09
    Key Lifespan>1 million actuations
    MTBF>20000H
    MTTR<30min
    APPLICATIONSIndustrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

    Black Metal Keyboard Product Pictures:
