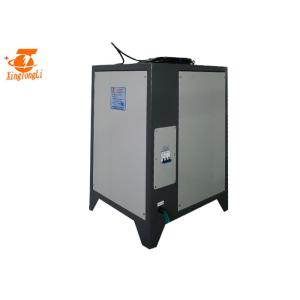

3 Phase Switch Model Electrolysis Power Supply , Industrial Electrolytic Rectifier

    Buy cheap 3 Phase Switch Model Electrolysis Power Supply , Industrial Electrolytic Rectifier from wholesalers

    Buy cheap 3 Phase Switch Model Electrolysis Power Supply , Industrial Electrolytic Rectifier from wholesalers
    • Buy cheap 3 Phase Switch Model Electrolysis Power Supply , Industrial Electrolytic Rectifier from wholesalers
    • Buy cheap 3 Phase Switch Model Electrolysis Power Supply , Industrial Electrolytic Rectifier from wholesalers
    • Buy cheap 3 Phase Switch Model Electrolysis Power Supply , Industrial Electrolytic Rectifier from wholesalers
    • Buy cheap 3 Phase Switch Model Electrolysis Power Supply , Industrial Electrolytic Rectifier from wholesalers
    • Buy cheap 3 Phase Switch Model Electrolysis Power Supply , Industrial Electrolytic Rectifier from wholesalers
    • Buy cheap 3 Phase Switch Model Electrolysis Power Supply , Industrial Electrolytic Rectifier from wholesalers
    • Buy cheap 3 Phase Switch Model Electrolysis Power Supply , Industrial Electrolytic Rectifier from wholesalers
    • Buy cheap 3 Phase Switch Model Electrolysis Power Supply , Industrial Electrolytic Rectifier from wholesalers

    3 Phase Switch Model Electrolysis Power Supply , Industrial Electrolytic Rectifier

    Ask Lasest Price
    Brand Name : xingtongli
    Model Number : GKD15-2000CVC
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 units /month
    • Product Details
    • Company Profile

    3 Phase Switch Model Electrolysis Power Supply , Industrial Electrolytic Rectifier


    GENRAL SEPCIFICATION 15v 2000a high frequency switch model DC Industrial electrolytic rectifier


    AC Inputvoltage440v
    frequency50/60hz
    phase3 phase
    outputcurrent0~2000a optional
    voltage0~15v optional or according to customers’ request
    frequency40khz
    effiencicy≥89%
    voltage stability≤1%
    current stability≤1%
    Stabilization modeCurrent stabilization/Voltage stabilization (Switchable easily)
    adjustment rangeVoltage/Current from 0-100% continuously adjustable within rated range
    control partcooling systemair cooling /water cooling/mixed water & air cooling
    control methodlocal panel control/remote control box/ PLC
    Display contentsVoltage meter/Current meter/Working/Over temp/Error, etc..
    Protection methodInput over voltage/Under voltage/Over current/Output short/Over heating self protection etc.
    use environmentOperating temperature-20-50℃
    Ambient temperature30-65℃
    Ambient humidity≤90%
    Working loadingFull capacity operation, more than 1,000 meters above sea level, reduced load operation

    OPTIONAL FEATURE:15v 2000a high frequency switch model DC Industrial electrolytic rectifier

    Reduced RippleRipple is the amount of AC that appears as voltage fluctuations on the DC output. Because some metal finishing applications cannot tolerate excessive ripple levels, We offers power supplies with ripple as low as 3% of the operating set point
    Polarity Reversingmanual reverse or automatic reverse
    Digital Ampere-Hour / Minute Meterachieve the current hour,current minute control,achieve the chemical solution automatically add
    Computer analog Interface0~10v,4~20mA,0~5V interface,achieve remote control,saving the cost
    PLC +HMI controlRS 485,Profibus,Profinet international standard interface
    multi-period TimerTimers are available to turn the rectifier off, sound an alarm, illuminate a light (or any combination) at the end of a process cycle


    Cabinet:

    electrolysis rectifier Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

    Structure:

    Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

    Radiator:

    radiator capacity expanded 1.5 times,make sure better cooling effect

    switch control way:

    electrolysis rectifier adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

    Main transformer:

    dc electrolyisis rectifier adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

    Core & Schottky diode:

    core capacity expanded 1.5 times

    schottky diode expands 4 times


    Board :

    all control boards did anticorrosion treatment with imported three defense lacquer

    IGBT:

    aluminum anodizing rectifier IGBT capacity expanded 3 times,make the power supply more reliable


    Installation


    1,Placing 15v 2000a high frequency switch model DC Industrial electrolytic rectifier and keep the body stability; ensure good ventilation.
    2,Checking electrolysis rectifier out cover if loosing.
    3,Connecting shell to ground to prevent static electricity.
    4,Conecting the AC input wire
    5,Connecting the DC output copper bars
    6,Connecting the remote control box,if local control ,skip this step
    7,Turn on air switch, then the fan starts to rotate and the power indicator light.
    8,Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting.
    9,Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly.

    10,Disconnect the air switch, turn off the power
