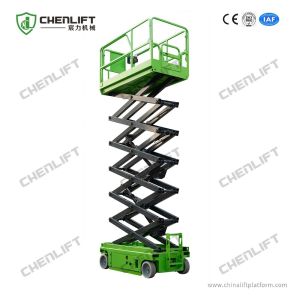

Electric Man Lift 10 Meters, Self propelled Scissor Lift MEWP With
Extendable Platform
Description:
The scissor working platform is a special equipment for high
altitude operation, which is widely used. Its shear fork type
mechanical structure makes the lifting platform have higher
stability, wide working platform and higher bearing capacity. It
makes aerial work more efficient and safer. It is suitable for many
people to work at the same time. It is widely used at warehouse,
freight station, sales room, exterior components, it's working
height could reach to 14m, two workers loaded, it's better than a
folding arm lift platform.
Safety Precaution:
Self-propelled Scissor Lift does not need to be manually towed or
connected to external power supply. It's applied in all kinds of
aerial working place, and a useful vertical lifting/lowering
assistant device.
Operator could control lifting and lowering on platform, driving
and turning could also be done on platform at lowest height.
Self-propelled Scissor Lift with safety load, steady lifting up and
down, constant driving speed, easy operation and convenient
maintenance.
It's widely used in machinery, chemistry industry, water
engineering projects, hotel, restaurants, train station, airport,
shipping yard, electronics and electric power industry etc.
Parameters:
| Model | MX1000S |
| Load capacity | 320kg |
| Extension load capacity | 113kg |
| Max Worker number | 2 |
| Working height | 12m |
| Platform floor height | 10m |
| Platform size | 2.27*1.12m |
| Lifting / drive motor | 24V/3.3kw |
| Travelling speed(stowed) | 3.0km/h |
| Travelling speed(raised) | 1.0km/h |
| Lifting/ lowering speed | 60/40sec |
| Batteries | 4*6V/225Ah |
| Charger | 24V/ 30A |
| Gradeability | 25% |
| Max working slop | 2°/3° |
| Weight | 2468kg |
Standard Configuration:
Proportional control Auto-brake system
Auto-lock door on platform Extension Platform
Drivable when lifted Traceless tire
4 x 2 Driving Auxiliary lowering device
Emergency stop button Horn
Fault diagnosis system Tilting protection system
Action buzzer Time Recorder
Supporting bar Fork Lift Slot
Charging protection system Strobe light
Detachable fence Automatic pothole protection
Optional Configuration:
- Overload protection sensor with alarm
- DC Power connection to the platform
- Working light on the platform
- Airway tube to the platform
Applications:
1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel
Exhibition Hall etc.
2. Aerial Working Purpose: machine maintenance, painting, cleaning
etc.
Why choose Our Scissor Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 10 Years Experience
Communication with Customers:
A: What is the difference from mobile scissor lift and mobile
aluminum aerial work platform?
B: The main difference is from the structure and the material
The scissor lift is in scissor structure with steel material
The aerial work platform is in mast structure with aluminum
material
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001
quality management system. When the products are finished, the
inspection is 100% executed strictly
1.Strict quality control system on the whole process of production
2.Imported key arts to ensure the high quality of our products
3.Advanced equipment and tools for examination and quality control
4.100% strict examining products before shipment
5.All the quality complaints and improvement requirements are
always studied seriously, if reasonable, put into practice
immediately.
A: What is the delivery time for your goods?
B: it is 30 days after order confirmation
A: What spare parts that you can offer?
B: We provide following spare parts freely for your maintenance of
the machine:
| Item | Quantity |
| Fuse | 3 |
| "O" Rubber Seals Φ11 | 3 |
| Wrench | 1 |
| Pressure Oiler | 1 |
| Cross Screwdriver | 1 |
| Straight Screwdrive | 1 |
A: How long is your quality guarantee period?
B: We have one year warranty.
