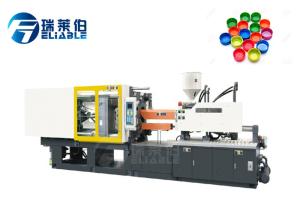

Pastic Injection Molding Machine for Bottle and Cap
Features:
* Screw of big length to diameter ratio, uniform plastication and
high plasticizing capability
* Multi Step adjustment of injection speed or pressure
* Back pressure control of molten plastic
* Double toggle mold closing system with a large force
magnification ratio and a large stroke ratio
* Very good speed characteristic of high speed mold closing and low
pressure mold protection
* Various kinds of hydraulic ejectors
* Double proportional, load sensitive hydraulic circuit
* For big sizes of machines there are several oil pumps in a group,
use proportional valve to compensate the difference of pressure or
flow between pumps
* Triple interlock of mechanic, electric and hydraulic devices
* Hydraulic knockout core device and rotary mold-parting the work
piece device
* Using the computer, electric and hydraulic elements of famous
brands in the world
Techincal Parameters:
| Unit | DS-350T |
| A | B | C |
| Injection unit |
| Screw Diameter | mm | 60 | 65 | 70 |
| Screw L/D Ratio | L/D | 24 | 22.4 | 20.9 |
| Shot Size(Theoretical) | cm3 | 994 | 1167 | 1353 |
| Injection Weight | g | 885 | 1030 | 1194 |
| Injection Pressure | Mpa | 213 | 195 | 180 |
| Plasticizing Capacity | g/s | 36 | 41 | 45 |
| Screw Speed | rpm | 0-195 |
| Clamping unit |
| Clamp Tonnage | KN | 3500 |
| Toggle Stroke | mm | 620 |
| Space Between Tie Bars | mm | 660*660 |
| Max.Mold Height | mm | 700 |
| Min.Mold Height | mm | 250 |
| Ejector Stroke | mm | 160 |
| Ejector Tonnage | KN | 120 |
| Ejector Number | PC | 13 |
| Others |
| Max.Pump Pressure | Mpa | 16 |
| Pump Motor Power | KW | 37 |
| Heater Power | KW | 20 |
| Machine Dimension(L*W*H) | m | 6.8*1.8*2.4 |
| Machine Weight(About) | T | 11 |
Pastic Injection Molding Machine for Bottle and Cap
A Injection Unit:
•A07) Oil temperature indication
•A08) Adjustable such back before and after refilling
•A09) Auto sprue break
•A10) Linear transducer to control programmable injection position
•A11) Cold start screw prevention
•A12) Sliding Mechanism for hopper
•A13) Gas Nitrated hardened screw and Barrel
•A14) Screw back pressure con troll with pressure relief valve
•A15) Hand Operated Lubrication Unit
B. Clamping Unit
•B01) Five Point twin toggle locking system
•B02) Case Hardened toggle, Brackets and links with hardened
PIN & BUSH
•B03) Motorized mould height adjustment for quick mould change
•B04) Auto tonnage setting facility
•B05) Low pressure precise mould protection with pressure and time
setting
•B06) Five stage Mould closing
•B07) Five stage Mould opening
•B08) Hydraulic cushioning for consistent mould opening position
•B09) Linear transducer to control programmable clamp system
•B10) Electrical and hydraulic (Dump value) interlock safety gate
•B11) Moving platen with mechanical support with Teflon
•B12) Hydraulic Ejector with Multi stroke
•B13) Auto lubrication unit
How to get your suitable machine or production line ?
Please reply to the following questions, do it and give your
answers to us as possible as you can.
1. How about the bottle size,volume ,height ,neck diameter
,diameter of bottle or other please inform us of details .Pictures
and design will be great
2. What is the production capacity(per hour) you want ?
3. Your power supply, for examples : 3Phases AC 380V 50Hz
then we can offer you more detailed quotation and other information
you need .
What Reliable Machinery Co.,Ltd can offer you ?
Our products include: Liquid filling machines (water, fruit
juice/tea, carbonated drink, oil, alcohol, plant protein drink,
etc.), Barreled filling line (3-5 gallon) Water treatment machines,
Labeling & packing machines, semi-automatic /full automatic bottle
blowing machines, and injection molding machines.
Reliable Machinery can provide turn-key services for customers,
from plant layout, equipment manufacture and production line
installation to operator training and other after-sales services .
