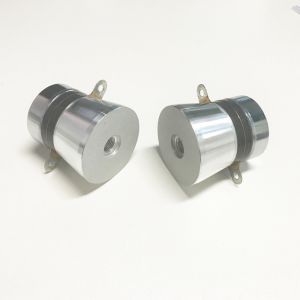

ultrasonic cleaning transducer cleaner 100W/28khz/50w/40khz piezoceramic transducer

Name: ultrasonic cleaning transducer cleaner 100W28khz50w40khz piezoceramic transducer
Brand: Ours
Price: 11 USD

Ask Lasest Price
Brand Name :	Ours
Model Number :	ARS-QXHNQ13550 PZT-4
Certification :	CE and FCC
Price :	USD11/PCS-USD13/PCS
Payment Terms :	T/T, Western Union, PAYPAL
Supply Ability :	1000000pcs
Delivery Time :	2-3 days

Add to Cart

Product Details
Company Profile

ultrasonic cleaning transducer cleaner 100W/28khz/50w/40khz piezoceramic transducer

ultrasonic cleaning transducer cleaner 100W/28khz/50w/40khz piezoceramic transducer

ultrasonic cleaning transducer:

Ultrasonic transducer can transform the high frequency electrical signal into the form of ultrasonic wave to the outside world, so that the water molecules in the container can produce high speed vibration and micro jet, so as to realize the non-contact cleaning of the articles

In order to understand the mechanics of ultrasonics, it is necessary to first have a basic understanding of sound waves,
how they are generated and how they travel through a conducting medium. The dictionary defines sound as
the transmission of vibration through an elastic medium which may be a solid, liquid, or a gas.
Sound Wave Generation A sound wave is produced when a solitary or repeating displacement is generated
in a sound conducting medium, such as by a “shock” event or “vibratory” movement. The displacement of air
by the cone of a radio speaker is a good example of “vibratory” sound waves generated by mechanical
movement. As the speaker cone moves back and forth, the air in front of the cone is alternately compressed
and rarefied to produce sound waves, which travel through the air until they are finally dissipated.
We are probably most familiar with sound waves generated by alternating mechanical motion.
There are also sound waves which are created by a single “shock” event. An example is thunder
which is generated as air instantaneously changes volume as a result of an electrical discharge (lightning).
Another example of a shock event might be the sound created as a wooden board falls with its face against
a cement floor. Shock events are sources of a single compression wave which radiates from the source.

Ultrasonic Cleaner Transducer For Dental Ultrasonic Cleaning

UlTRASONIC TRANSDUCER CHARACTERISTICS

1.Small machinery loss,
2.High efficiency electricity
3.Sound transfer,
4.Big swing and less heat.
5.Good construction
6.Easy to installation
7.High reliablity

Type	Length(mm)	Weight(g)	Frequency(KHz)	Resonance Impedance (Ω)	Static Capacity (pF)±10%	Input Power(W)
ARS-QXHNQ-20100 PZT-8	94	900	20	10-20	5200	100
ARS-QXHNQ-25100 PZT-4	77	710	25	10-20	6600	100
ARS-QXHNQ-28100 PZT-8	66	625	28	10-20	5200	100
ARS-QXHNQ-28100 PZT-4	66	624	28	10-20	6600	100
ARS-QXHNQ-30100 PZT-8	61	555	30	10-20	5200	100
ARS-QXHNQ-2560 PZT-4	77	530	25	10-20	5400	60
ARS-QXHNQ-2860 PZT-8	68	470	28	10-20	3800	60
ARS-QXHNQ-2850 PZT-4	82	425	28	10-20	4100	50
ARS-QXHNQ-3360 PZT-8	58	420	33	10-20	3800	60
ARS-QXHNQ-4060 PZT-8	55	300	40	10-20	3800	60
ARS-QXHNQ-4060 PZT-4	56	310	40	10-20	5400	60
ARS-QXHNQ-4050 PZT-4	54	260	40	10-20	4100	50
ARS-QXHNQ-4050-1 PZT-4	57	300	40	10-20	4100	50
ARS-QXHNQ-5435 PZT-4	36	135	54	10-20	3200	35
ARS-QXHNQ-6860 PZT-8	80	460	68	10-20	3800	60
ARS-QXHNQ-68120 PZT-4	67	588	68	10-20	7800	120
ARS-QXHNQ-8060 PZT-4	60	325	80	10-20	5400	60
ARS-QXHNQ-12060 PZT-4	56	260	120	10-20	5400	60
ARS-QXHNQ-13550 PZT-4	54	215	135	10-20	4200	50

ultrasonic cleaning transducer cleaner 100W/28khz/50w/40khz piezoceramic transducer

Packing:

ultrasonic cleaning transducer cleaner 100W/28khz/50w/40khz piezoceramic transducer
