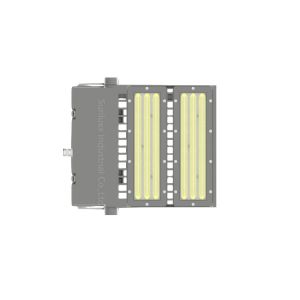

IK10 Anti - Corrosion IP66 LED Stadium Light 140lm/W Sport Courts
Area Light , Strong Wind Resistance
Features
Sufficient Brightness
- Its brightness is up to 28000 lumen, fully meets your lighting
needs.
- No shadow, dizzy light, providing you excellent bright light.
Wide Beam Angle
ANB, AWB, SNB, SWB beam angles for your options, providing you with
wide illumination range.
Durable

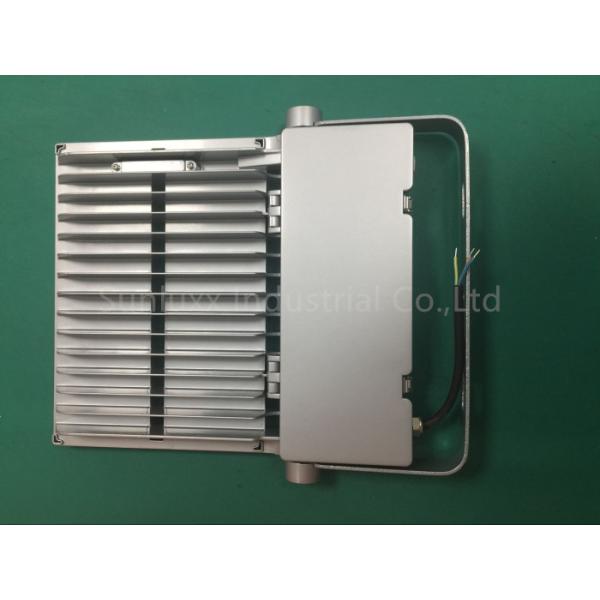

- With fully aluminum alloy Die-casting case, this stadium flood
light has excellent heat dissipation, which effectively prolongs
its lifespan.
- By high quality PC lens materials and professional design, make
it high transmittance, strong waterproof and long life.
Flexible Installation
- It comes with a adjustable bracket on the lamp body, allowing you
to install the light flexibly.
- The lamp body can be adjusted 180°, flexible enough to meet your
lighting requirements.
Versatile
- With IP66 rating, this floodlight can be widely used in outdoor
lighting projects as billboards, gardens, various courts, etc.
Product Details
| Power | 200W |
| Input Voltage | 90 - 305VAC |
| Input Current | 0.91A@220VAC |
| PF | >0.9@220VAC |
| DC Output Voltage | 48V |
| DC Output Current | 3.9A |
| Dimming (Optional) | 3 in one dimming(PMW, 1-10V,Resistor), DALI |
| CCT | 4000k, 5000k, 5700K, 3000K and 2700K can be customized |
| Ra>80,5000K | Typical Flux | 26000lm±10% |
| Efficiency | 130lm/W±10% |
| Ra>70,5000K | Typical Flux | 28000lm±10% |
| Efficiency | 140lm/W±10% |
| LED Brand | NICHIA 3030 |
| Light Type | Asymmetric and symmetric polarized light |
| Operation Temp. | -40 ℃ to + 45 ℃ |
| Storage Temp. | -40 ℃ to + 85 ℃ |
| Lifespan | 45℃ , 50,000 hours |
| IP Class | 66 |
| IK Class | 10 |
| Lamp Body Color | Grey or as customized |
| Product Size(mm) | 441*373*50 |
| Net Weight(kg) | 6.37 |
| Packing size(mm) | 540*460*190 |
| Gross Weight(kg) | 13.5 |
| Product Quantity Per Carton | 2pcs |
| Installation Method | Bracket Mount |
Beam Angle
Accessories
Light Distribusion Curve
Installation Manual
Applications
Garden Lighting,Park Lighting,Billboard Lighting,Landscape
Lighting,Building Lighting,Stadium Lighting
