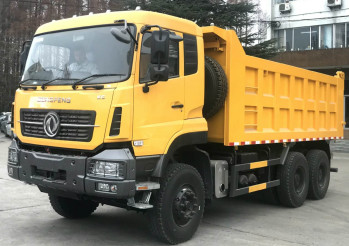

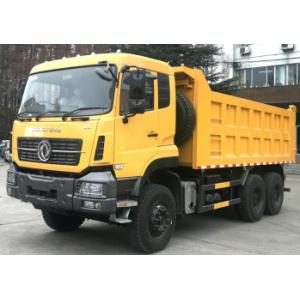

Dongfeng Used Dump Truck 5600X2300X1200 Dimensions 280L Fuel Tank Capacity

Name: Dongfeng Used Dump Truck 5600X2300X1200 Dimensions 280L Fuel Tank Capacity
Brand: Dongfeng
Price: 1 USD

Ask Lasest Price
Brand Name :	Dongfeng
Model Number :	DFL3251A7-ZG3Y-000-002J
Certification :	ISO, CCC, CE
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	50 units per month
Delivery Time :	5- 8 working days after receipt of payment

Add to Cart

Product Details
Company Profile

Dongfeng Used Dump Truck 5600X2300X1200 Dimensions 280L Fuel Tank Capacity

USED Dongfeng dump truck with 6x4 drive model and diesel engine,Euro III Emission standard in 2014 year could be used in kinds of constructions.

Product Specification
Model	DFL3251A7-ZG3Y-000-002J
Vehicle Type			KC 6X4
G.V.W		(kg )	25000
Vehicle kerb weight		(kg )	16600
Axle Capacity	1st Axle Capacity	(kg )	9000
	2nd Axle Capacity	(kg )	22000
	3rd Axle Capacity	(kg )	22000
Dimensions	Whellbase	(mm )	3800+1350
	Overall Length	(mm )	8350/7550
	Overall Width	(mm )	2500
	Overall Height	(mm )	3450/3210
	Cargo Dimensions	(mm )	5600X2300X1200
Frame System	Type
Frame System	Dimensions	(mm )	300X90X8+8,frame width (front ) 940,frame width (rear ) 860
Engine	Model		YC6MK340-33
	Type		water cooled,turbocharged,after cooled,direct injection,optiongal cold start(optiongal intake air preheating)
	Capacity	(cc )	10338
	Max.Output	(hp/rpm )	250kw (340hp) at 1900rpm
	Max.Torque	(Nm/rpm )	1550Nm at 1100-1500rpm
Transmission	Gearbox Type		DC10J170T
	Gear Ratio		14.36,10.66,7.875,5.82,4.38,3.28,2.74,1.80,1.33,1.00,14.01R1,3.20R2
	Clutch		Φ430,Hydraulic control with air booster,pulling,clutch brand:Valeo
	Rear Axle Gear Ratio		Hub reduction ,tandem axle, with axle differential lock and wheel differential lock ,ratio 5.92
Brake System	Service Brake		full air brake system, split pneumatic circuit,optional ABS
	Parking Brake		parking spring brake acting on rear axles
	Auxiliary Brake		exhaust brake
Suspension	Front		10-leaf spring with shock absorber and stabilizer bar
Suspension	Rear		13-leaf spring,equalizing type suspension
Steering System	Steering		integral power steering with cooling system,optiongal steering-gear brand:ZF
	Tire		12.00R20
	Rim		8.5-20,steel
Electric System	Type
	Battery capacity	(A·h)	165A.hX2
	Voltage	(V)	24
	Generator capacity	(KW)	24V,7.5KW
	Alternator	(A)	28V,70A
Chassis System	Chassis System Type		oil bath air filter,spare tire hook
	Fuel Tank Type		aluminium fuel tank
	Fuel Tank Capacity	(litre )	280L
Performance	Max.Speed	(km/h )	75
Performance	Gradeability at G.C.W(or G.V.W)	(%)	≮30
Cab Type			Sleeper cab,one bunk,standard roof,new face;all welded steel cab of tilt type;hydraulic cab tilting;semi-float cab suspension: front fixed and rear mechanical shock absorbing suspension;adjustable driver’s seat;air heating system, air conditioning system;4-spoke titanium silver steering wheel.
Standard Equipment			mechanical shock absorbing seat,no centre seat,manual hydraulic cab tilting,manual windows, electric door lock,no intake air preheating,steering-gear made in china,no ABS,oil bath air filter.
Option Equipment			air shock absorbing seat,centre seat,electric hydraulic cab tilting,electric windows, electric door lock,intake air preheating,steering-gear brand:ZF,ABS.

Trade Terms:

Delivery time: Wihtin 5-8 working days after receipt of down payment.
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Price validity: Within 30 days.
Payment terms: T/T before shipment.

Service we can provide: USED coaster bus, yutong bus, higer bus, kinglong bus, golden dragon bus, sunlong bus, etc. Also can provide used trucks like howo dump trucks, tractor trucks, concrete mixer trucks, tanker trucks, and other special purpose trucks, etc.

Except the products, we can also provide sepcial USED VEHICLES AND USED MACHIENRY export business. We warmly welcome all customers and friends who need our service, and happy to build long-term relationship with you.
