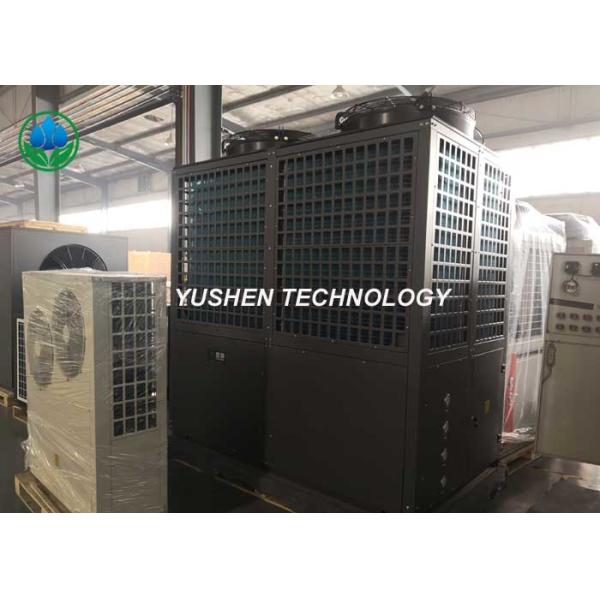

Floor Mounted Electric Air Source Heat Pump 5P And 6P Compressor Capacity

Name: Floor Mounted Electric Air Source Heat Pump 5P And 6P Compressor Capacity
Brand: Yushen
Price: 1 USD

Add to Cart

Floor Mounted Air Source Heat Pump 5P and 6P Electric Water heater

Features

Convenient installation: small size, can be placed outdoor open space, roof, balcony, large garage, equipment layer, etc., without special equipment room, to achieve integration with the building.
Easy to use and operate: The unit is fully automatic controlled by the microcomputer, and automatically starts and stops according to the water temperature of the water tank and the water consumption of the user, without special personnel.
Automatic timed start function: Users can set the unit's automatic boot time. It can set the valley electric heating, and the running cost is more economical; it has the automatic memory function of power-off, and it automatically starts up after the call.

Yushen Product advantages

1. large application range:Jet boosting technology, it could work under -25C~+43C environmental temperature, without heat decay.

2. Intelligent defrosting, 9 second fast defrosting.

3. Environmentally friendly refrigerant, does not destroy the ozone layer;

4. Energy saving 35% compared with similar products

5. Automatic testing line, standard product 100% testing more than 20 items

Model data

Model		SDWA-014Y	SDWA-017Y
Compressor capacity		5HP	6HP
Function		Heat	Heat
Electricity		220V 1N-50Hz	380V 3N-50Hz
Working conditions	℃	-25~+43	-25~+43
Nominal heating capacity	KW	14	17
COP	KW/KW	4.12	4.1
Nominal input power	KW	3.9	4.14
Max. running currency	A	32	11.5
Highest water temperature	℃	60	60
Compressor quantity	Set	1	1
Refrigerant/charging quantity kg	/	R22/3.7	R22/4.8
Air blow type	/	Top	Top
Water pipe diameter	/	1''	1 1/2''
Rating flow	m³/h	2.8	3
Water side pressure loss	kPa	≤45	≤45
Noise level	dB(A)	62	62
Overall dimensions(L×W×H)	mm	730×700×1020	860×820×1080
Weight	kg	180	197
Nominal heating conditions:ambient dry bulb temperature 7℃, web bulb temperature 6℃, water inlet temperature 9℃,water outlet temperature 55℃
