Din Rail Meter Single Phase Energy Meter test bench(Integration)

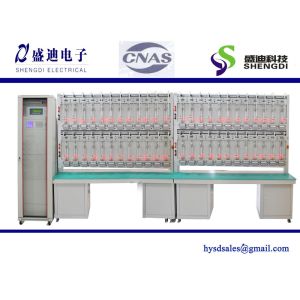

HS-6103F SINGLE PHASE ENERGY METER TEST BENCH

AUTOMATIC CHANGE TO CALIBRATE/TEST LINE AND NEUTRAL

This specification for single phase dual loop energy meter test bench.

Voltage Source:

1. Output Voltage Range: 0- 275/300V

2. Output Max Power: 800VA

3. Resolution: 0.01%

4. Stability: Better than 0.05% / 3 Min(Time base 5S)

5. Distortion factor: < 0.5% at linear load;

6. Frequency range: 45Hz~65Hz;

7. Power efficiency: more than 85%;

8. Ambient temperature:10℃~50℃

9. Electronic overload and short-circuit protection.

Current Source:

1. Output current: range: 1mA~100A;+/-20%

2. Output maximum power: 2000VA

3. Resolution: 0.01%;

4. Stability:better than 0.05%/3 min(time base 5S);

5. Distortion factor: < 0.5% at linear load;

6. Frequency range: 45Hz~65Hz;

7. Power efficiency: greater than 85%;

8. Ambient temperature:10℃~50℃

9. Electronic overload protection and security for open current circuit.

Reference Meter:

HS-5100 Single Phase Reference Meter Accuracy class :0.05%

Accessories:

1. Phase Angle: 0°~360° , resolution of phase angle setting: 0.1°;

2. Output frequency range: 45Hz~65Hz; resolution: 0.01Hz

3. Output stability of power: <0.05% (180S)

4.. Input power: 220/240V +/-15%, 50/60Hz;

5. RS485 Communication Capacity.Universal Serial Bus

6. Current Connect Type: 1-4,3-2 (Dual Loop)

Dimensions

HAIYAN SHENGDI ELECTRICAL TECHNICAL CO.,LTD

CONTACT: YELI

Tel/Fax: 0086-573-86161698

EMAIL: hysdsales@gmail.com

SKYPE: lily19850618

We are the manufacturer of HS Series Single & Three-Phase Energy meter Test Bench.
