12V DC Input , Presence Motion Detector , 1 ~ 10v Dimming ,
Daylight Monitoring Function

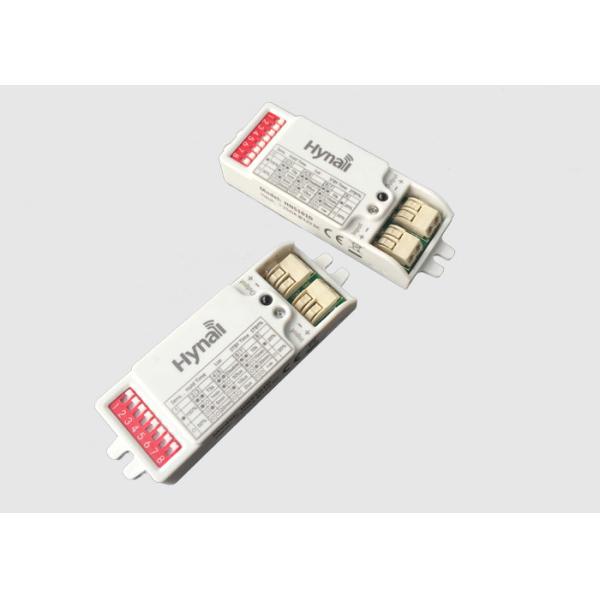

12V DC input motion sensor with 1~10v dimming output and DIP switch
setting, dual-processor technology to differentiate the natural
light and lamp light, daylight monitoring function available.
Features--
Input voltage 12V DC (5V & 24V DC version available on request).
Input current:≥25mA.
1~10V dimming output.
Dual-processor technology, real Daylight monitoring function for
built-in application.
8 pin DIP switch setting, multiple options to meet different
customer demands.
Detection range up to 12m in diameter.
Mounting height: 3~6m.
Operation temperature; -20℃ ~ + 70℃.
Settings--
Detection range
Hold-time
Hold-time means the time period to keep the lamp on 100% after
motion detected.
*when hold-time set as 3s, sensor enters into test mode, this test
mode is mainly for users to choose the desired detection range. In
this mode, the daylight sensor is disabled, when there is no
motion, fixture keeps off, when there is motion detected, fixture
keeps a cycle of 3s on and 2s off.
Daylight sensor
Daylight sensor means the daylight threshold to enable or disable
the sensor function.
"Disable": The sensor works always, even during daylight.
"50lux": The sensor works only in twilight.
"10lux, 2lux": The sensor works only in the dark.
Stand-by period
This is the time period that the lamp remains at a low light level
before it is completely switched off in the long absence of people.
“+∞”: means bi-level dimming control, the fixture never switch off.
Stand-by dimming level
This is the dimmed low light level you would like to have after the
hold-time in the absence of people.
Detection pattern--
Daylight monitoring function--
Utilizing the Dual-processor technology, this sensor can tell the
difference of natural light and artificial light(lamp) from behind
the diffuser, switch on automatically(even without movements) when
the ambient light is below target value, and then switch off
automatically whenever the artificial light is not required(ambient
light is bright enough).
Note: Lux-Off sampling time—30s; Lux-On sampling time—10s.
Lux-On function takes effect only when standby dimming period set
at+∞.
