Aluminum Load Cell 2-3 Meters Cable Length Anti - Corrosion Feature

Single Point Load Cells
Model: SPA-03
Capacity: 5kg-200kg

Features:
Aluminum alloy construction with parallel beam.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Applied High accuracy strain gages. OIML, NTEP standard

Application: Suitable for pricing scales, platform scales and other electronic weighing devices

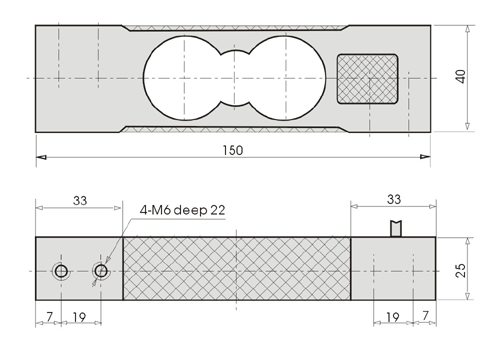

Dimensions:(mm)

Technical Parameters
Accuracy Class:	C2/C3
Rated Output:	2mv/v±0.1
Creep(%F.S/30min):	±0.02
Zero balance(%F.S):	±1.0
Input resistance:	405±10
Output resistance:	350±3
Insulation resistance:	≥5000(100VDC)
Temp. effect on span(%F.S/10℃):	±0.02
Temp. effect on zero(%F.S/10℃):	±0.02
Use temp. range(℃):	-20～+55
Excitation voltage(V):	9～12(DC)
Safety overload (%F.S)	120%
Ultimate overload (%F.S)	150%
Defend grade:	IP65
Cable Length:	3 meters -6 meters
Wire Connection
