10t 20t 30t Double Ended Shear Beam Load Cell , High Precision Load Cell

Name: 10t 20t 30t Double Ended Shear Beam Load Cell High Precision Load Cell
Brand: TOP SENSOR
Price: 1 USD

Ask Lasest Price
Brand Name :	TOP SENSOR
Model Number :	DB-03
Certification :	CE
Payment Terms :	T/T, Western Union
Delivery Time :	25 days
Price :	Negotiable

Add to Cart

Product Details
Company Profile

10t 20t 30t Double Ended Shear Beam Load Cell , High Precision Load Cell

10t 20t 30t Double Ended Shear Beam Load Cell , High Precision Load Cell

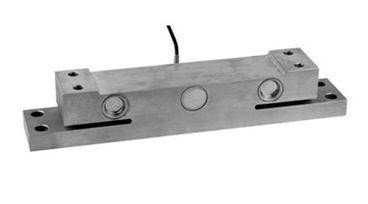

Bridge Load Cells DB-03

Double Shear Beam Load Cells Model: DB-03 CAPACITY: 10-30t Features: Double Shear Beam Load Cell, Capacity 10t,20t,30t Material: Alloy Steel construction, nickel plated Easy Installation, High Accuracy, Reliable performance APPLICATIONS: Weigh Bridge, Truck Scale, railway weighing

Bridge Type Load Cells, Double Shear Beam Load Cells, Force Sensor
Model: DB-03
CAPACITY: 10-30t

Features:
Double Shear Beam Load Cell, Capacity 10t,20t,30t
Material: Alloy Steel construction, nickel plated
Easy Installation, High Accuracy, Reliable performance
Application: Weigh Bridge, Truck Scale, railway weighing

Dimensions: (mm)

Parameters:

Precision:		C2
Rated Output:		2mv/v±0.003
Creep(%F.S/30min):		±0.02
Zero balance(%F.S):		±1.5
Input resistance:		750±5
Output resistance:		700±5
Insulation resistance:		≥5000(100VDC)
Temp. effect on span(%F.S/10℃):		±0.017
Temp. effect on zero(%F.S/10℃):		±0.02
Use temp. range(℃ ):		-20～+55
Excitation voltage(V):		9～12(DC)
Safety overload (%F.S)		150%
Ultimate overload (%F.S)		200%
Defend grade		IP68
Cable Length:		5 meters -15 meters
Wire Connection Method
