High Capacity Load Cell Weighing Capacity Range 10t 20t 30t 40t

Name: High Capacity Load Cell Weighing Capacity Range 10t 20t 30t 40t
Brand: Top Sensor
Price: 1 USD

Ask Lasest Price
Brand Name :	Top Sensor
Model Number :	CR-05D
Certification :	CE
Payment Terms :	T/T, Western Union
Delivery Time :	15-20 days
Price :	Negotiable

Add to Cart

Product Details
Company Profile

High Capacity Load Cell Weighing Capacity Range 10t 20t 30t 40t

High Capacity Load Cell Weighing Capacity Range 10t 20t 30t 40t

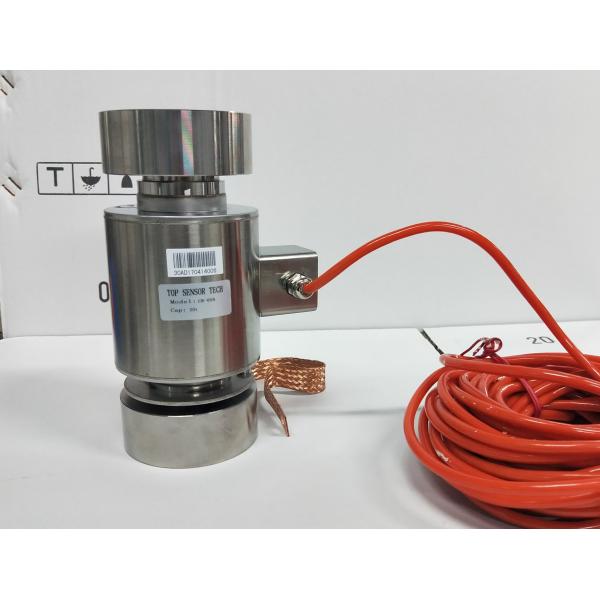

Canister Load Cells CR-05D

Canister Load Cell, Column Type, Compression Weighing Model: CR-05 CAPACITY: 10-40T Features: Canister Load Cell, High Accuracy, More Stable, The Weighing Capacity range: 10-40t, Stainless Steel Structure, Compression Load Cell Laser Sealed, Water Proof to IP68

Canister Load Cell, Column Type, Compression Weighing
Model: CR-05D
Capacity: 10-40T
Features:
Canister Load Cell, High Accuracy, More Stable,
The Weighing Capacity range: 10t,20t.30t,40t
Alloy Steel or Stainless Steel Structure, Compression Load Cell
Laser Sealed, Water Proof to IP67,
APPLICATIONS: Suit for Truck Scale, Weigh Bridge and other electronic weighing equipment

Dimensions (mm):

SPECIFICATION
Precision:		C3
Rated Output:		2.0 ±0.003
Creep(%F.S/30min):		±0.02
Zero balance(%F.S):		±1.0
Input resistance:		700±5
Output resistance:		700±5
Insulation resistance:		≥5000(100VDC)
Temp. effect on span(%F.S/10℃):		±0.017
Temp. effect on zero(%F.S/10℃):		±0.02
Use temp. range(℃ ):		-20～+55
Excitation voltage(V):		9～12(DC)
Safety overload (%F.S)		150%
Ultimate overload (%F.S)		200%
Defend grade		IP68
Cable Length:		10 meters -20 meters
Wire Connection Method
