Assembly Line Conveyor Belt

Name: Assembly Line Conveyor Belt
Brand: YiFan
Price: 800 USD

Ask Lasest Price
Brand Name :	YiFan
Model Number :	BC
Certification :	ISO9001:2008
Price :	800USD
Payment Terms :	TT
Supply Ability :	50 units/month
Delivery Time :	15-30 days

Add to Cart

Product Details
Company Profile

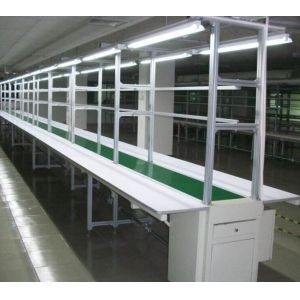

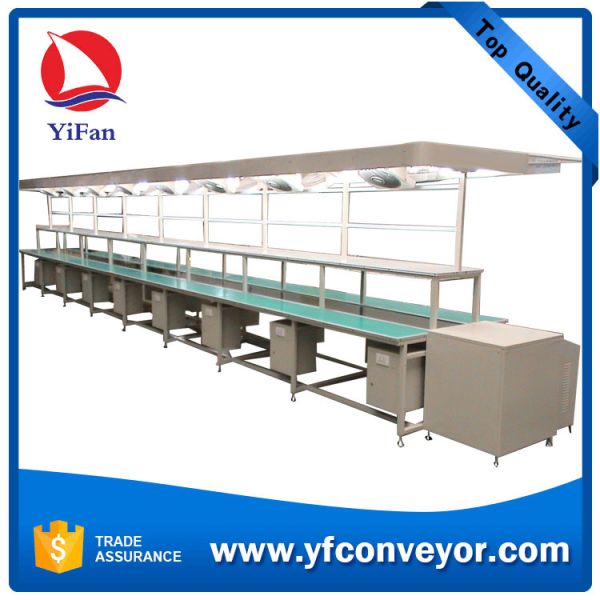

Assembly Line Conveyor Belt

Description

Assembly Line Conveyor Belt consists of two 300mm wide Aluminum PVC belt conveyor.In the middle of two belt conveyors,there are two working tables,some sockets & tools in second levels,lights above the shelves.The whole assembly line is controlled by one main electrical box and can be automatically start and stop.There are also OFF/ON button beside each working section.We can also supply other customized assembly line as per your special requirements.

Technical Parameters

Length	4-10 working sections
Height	700mm
Belt Width	300mm
Belt Type	flat smooth PVC belt
Frame and Legs	Aluminum
Variable Speed	10-20m/min
Motor Power	1.5kw
Load Capacity	10-20kg/m

Contact Us

Ningbo YiFan Conveyor Equipment Co.,Ltd.

Email: sales@yfconveyor.com

Web: http://www.yfconveyor.com

Tel:+86 574 8630 1900

Fax:+86 574 8630 1900

Mob:+86 139 5824 8487

FAQ

Can this conveyor be operation in two way FORWARD & REVERSE?
YES
Is the speed controllable?
YES
How many KGS can this conveyor carry?
50KGS per square meter
What products can this conveyor be used to load?
Cartons,boxes,bags,parcels,packages,etc.
Can we add other flexible conveyor to it at the floor level?
YES
Can we use customized belt and motor?
Yes
Can the height be customized?
YES
Can you make the voltage as per our requirements?
YES
How do you dispatch this conveyor?
We will disapart it for dispatch
How long is the delivery time?
25-30 days
How long is the warranty?
1 year
Do you supply OEM & ODM service?
YES
Do you have user’s guide and maintenance instruction?
YES
What are the necessary spare parts we should keep?
Belts,motors,inverter,buttons
