0.8-1.8mm Steel Frame C Purlin Forming Machine 14 Station With Gcr12 Cutter

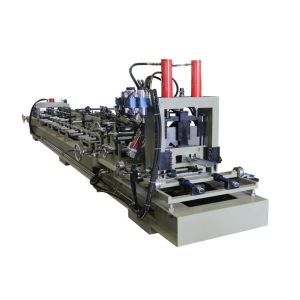

    Buy cheap 0.8-1.8mm Steel Frame C Purlin Forming Machine 14 Station With Gcr12 Cutter from wholesalers

    Buy cheap 0.8-1.8mm Steel Frame C Purlin Forming Machine 14 Station With Gcr12 Cutter from wholesalers
    • Buy cheap 0.8-1.8mm Steel Frame C Purlin Forming Machine 14 Station With Gcr12 Cutter from wholesalers

    0.8-1.8mm Steel Frame C Purlin Forming Machine 14 Station With Gcr12 Cutter

    Ask Lasest Price
    Brand Name : BMS
    Model Number : C60-200
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 30sets/month
    Certification : SGS,CE,ISO9001
    Delivery Time : 50days
    • Product Details
    • Company Profile

    0.8-1.8mm Steel Frame C Purlin Forming Machine 14 Station With Gcr12 Cutter

    Automatic C60-200 Purlin Roll Forming Machine


    After-sales Service ProvidedEngineers available to service machinery overseas
    Thickness0.8-1.8mm
    Shaft90mm/100mm
    Forming station14steps
    Working materialgalvanized sheet(GI),cold roll steel(CRC)
    Yield strength245-550Mpa
    DecoilerManual/Hydraulic for options
    HousingH450 beam
    Sidewall thickness18mm
    Cutter materialCr12Mov, heat treatment

    1. Main features of quickly change C purlin roll forming machine


    The advantages of C purlin machine AUTOMATIC size-change type are as follows:

    1. Produce different purlin sizes without changing rollers or spacers.

    2. No need changing cutter for a different size.

    3. Easy operation, low maintenance cost

    4. Infinite sizing(any size within machine range), help to save material

    5. Optional Punch hole at any position of purlin web side and flange side


    2. Other detailes of C purlin roll forming machine


    Suitable for material with thickness 1.0-2.0mm

    Shafts manufactured from 45#, Main shaft diameter=φ80mm, precision machined

    Motor driving, Gear chain transmission, 16 rollers to form and 7 rollers for straightening and leveling

    Main motor=15KW, Frequency speed control. Forming speed of approx.18m/min


    PLC Control System (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW,

    Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA, Encoder brand: Japan Koyo/OMRON)
