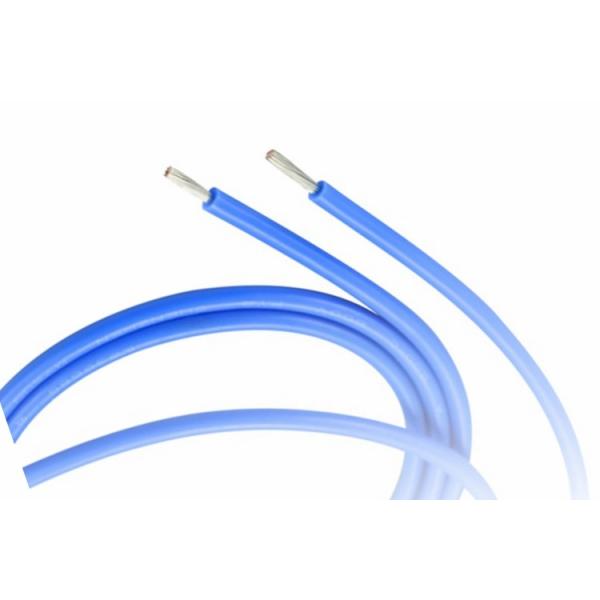

16AWG silicone insulated wire UL3133 many colors for options
Specification:
Rated voltage: 600V
Rated temperature: 150C
UL standard: UL758
Applications: this wire widely sued for home appliance, headlamp,
industrial machine and etc.
Cable dimensions:
| Conductor | Insulation | Max.Cond Resistance | Unit length | |||
| Size (AWG) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | (Ω/KM) | (M)(Ft) |
| 30 | 7/0.1 | 0.3 | 0.78 | 1.86 | 361 | 305/1000 |
| 28 | 7/0.12 | 0.38 | 0.78 | 1.94 | 227 | 305/1000 |
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | 305/1000 |
| 24 | 7/0.20 | 0.61 | 0.78 | 2.17 | 89.3 | 305/1000 |
| 22 | 7/0.254 | 0.77 | 0.78 | 2.33 | 56.4 | 305/1000 |
| 20 | 7/0.31 | 0.94 | 0.78 | 2.5 | 35.2 | 305/1000 |
| 18 | 7/0.39 | 1.19 | 0.78 | 2.75 | 22.2 | 305/1000 |
| 16 | 7/0.49 | 1.49 | 0.78 | 3.05 | 14 | 305/1000 |
Cable details:




Price term:
EXW, FOB, CIF
Payment terms:
LC, TT, Western Union and PayPal
Lead time:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
|
|
