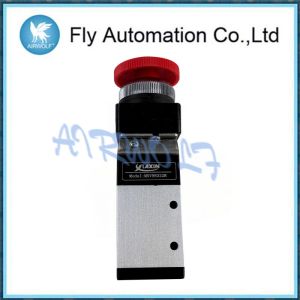

Aluminium Alloy 3 Way Pneumatic Valve , MSV9832 Series Push Pull Valve

MSV98322R G1/4" 3/2 Way Aluminium Alloy MSV9832 Series Stop Cock Mechanical Valve

Features

1. To be installed in moving devices like air cylinder, slide, etc.
2. Various operating styles.
3. Panel bore size Φ30(Option Φ25)

Specification

Model	MSV9832-02
Port size	1/4"(Option 1/8")
Body material	Aluminum alloy
Panel dimension	30mm(Option: 25mm)
Fluid	Compressed air
Sectional area	18mm²
Operating pressure range	0~9 kgf/cm²
Max. operating pressure	10 kgf/cm²
Ambient temperature	-10~60℃
Standard operator color	Black: TB, LB; Red: PB, PP, PPL, EB
