Main Feature
1. This machine has a compact structure, perfect control system,
easy to operate and highly automatic degree.
2. The parts contact with product is made of quality SUS,
anti-corrosive, and easy to clean.
3. By adopting high speed filling valve, the liquid level is
precise and no waste. That guarantees the demand of filling
technology.
4. The capping head adopts constant torque magnetic device to
guarantee capping quality and impact cap. This machine has a high
efficient cap arranging system, perfect cap feeding and protection
device.
5. Equipped with perfect clean management system to ensure the
bottle clean. Only by changing the star-wheel, can realize to fill
the changed bottle shape.
6. The machine adopts perfect overload protective device can ensure
the operator and machine safe. This machine adopts adjustable
frequency converter.
7. The main electric components, frequency, photoelectric switch,
proximity switch, electric control valves all adopt imported
components, which can ensure the quality performance.

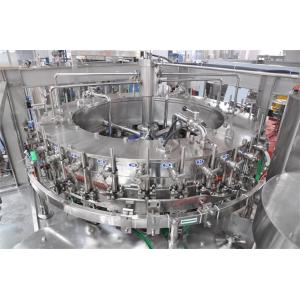

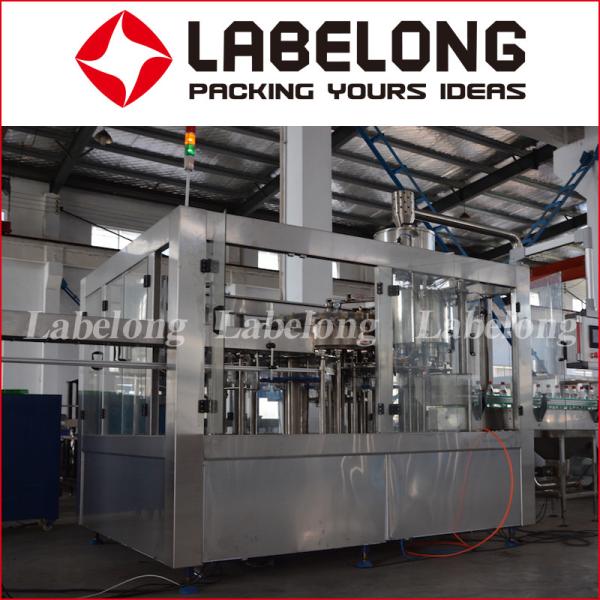

Machine Photo
The full bottle is transferred to the capping part through hold
neck transition poking wheel. The stop screwing knife holds the
bottle neck, keeps bottle upright not rotating. The screw capping
head keeps in revolution and autorotation. It can finish a whole
capping course including catching, pressing, screwing, discharging
through the action of the cam. The full bottle is transferred to
bottle outlet conveyor to the next process through poking wheel.
The whole machine is enclosed with windows, the height of enclosed
window is higher than the peak of the 3 in 1 machine, in the bottom
of the enclosed window has return air outlet
Main equipments as below:
1. Water treatment system (quartz sand filter, active carbon
filter, softner, RO system and so on)
2. Ozone generator sterilizer
3. Aseptic water storage tank
4. Sugar melting tank & syrup filter
5. Flavour blending tank & syrup cooler
6. Co2 drink mixer & Co2 filter
7. Water chiller
8. Auto bottle washing, filling and capping line
9. Labeling machine
10. Date of manufacture printer
11. Final products film packaging machine and so on.
Technical Parameter
| Model RFC-C series | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 |
| Washing-Filling-Capping | 14-12-5 | 16-16-5 | 24-24-8 | 32-32-10 | 40-40-10 | 50-50-12 |
Producing capacity
(600ml) | 2000-4000
(bph) | 5000-7000
(bph) | 8000-12000
(bph) | 12000-15000
(bph) | 16000-20000
(bph) | 20000-24000
(bph) |
| Applicable bottle (mm) | φ=50-108 H=170-340 330ml-2.25L |
| Pressure (kg/cm2) | 2~3 |
Outside vacuum
pump power (kw)
| Main motor
1.5kw | Main motor
2.2kw | Main motor
3kw | Main motor
4kw | Main motor
7.5kw | Main motor
9.5kw |
Overall dimension (mm)
(LxWxH) | 2100x1400
x2500 | 2460x1720
x2650 | 3100x2100
x2650 | 3500x2500
x2650 | 4600x1800
x2650 | 5200x4500
x3400 |
| Weight(kg) | 2500 | 3500 | 4200 | 5500 | 6800 | 7600 |
Suzhou labelong packaging machinery co.LTD.
Labelong is a intergration of research and development, manufacturing, sales
specialized automatic packagingmachinery manufacturers.
Company's main research and development production of various kinds
of packaging machine ,As follow:
1.Water treament system
2.semi&full automatic blow molding machine
3.semi&full automatic bottling line
4.sleeve labeling machine
5.Adhesive labeling machine
6. hot melt glue labeling machine
7.packing machine
can be customized various non-standard machines.
The company has advanced international equipment and technology, the machine mainly components and circuit electric appliance all come
from Italy, Switzerland, Germany, Taiwan and France. our Company's products with high performance, high technology content
products.
The products sell well all over the world, in part of models are exported to southeast Asia, the Middle East, Europe and
the United States,
Malaysia and other countries and regions in the world...
Professional makes best quality, Labelong together with you to create success.
Our factory
