    Max Compression 650KN With Pump Transmission Line Stringing Tool


    Max Compression 650KN With Pump Transmission Line Stringing Tool


    Compression 650KN Transmission Line Stringing Tool

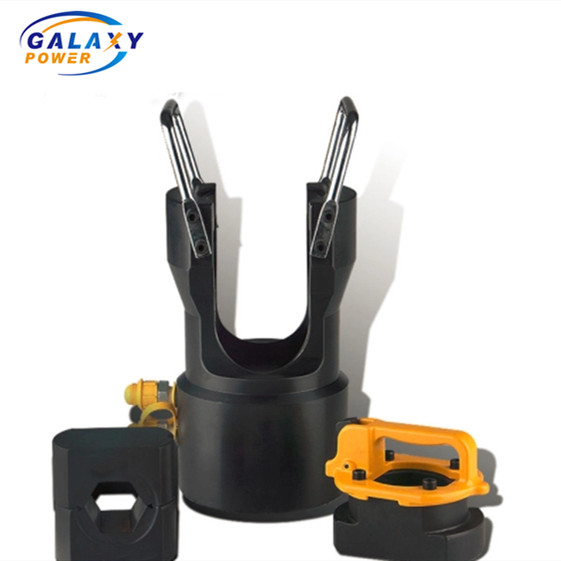

    Hydraulic Compressor Machine is used for conductor jointing on overhead transmisson line.

    The set include Hydraulic compressor, Motorised hydraulic pump, and die sets according to different joint of conductor.


    Compression 650KN Transmission Line Stringing Tool Quick details:


    1. Transmission Line Stringing Equipment Accessories & Tools
    2. Hydraulic compressor for overhead conductor
    3. Max compression force: 650kN
    4. Conductor size: ≤500
    5. Aluminum dies: 26~50mm Steel Dies: 12~26mm
    6. With Gasoline pump, Max force: 100Mpa

    7. GALAXY Brand



    Compression 650KN Transmission Line Stringing Tool Specification:


    For compressor, QY-35 work with hand pump or Single-tube electric pump; QY-65, QY-125, QY-200 work with hydraulic pump.
    ModelMax compression force (kN)Rated pressure (kN)Conductor size (mm)Max stroke (mm)Weight (kg)
    QY-3535070≤2402512
    QY-6565094≤5002525
    QY-125125094≤7202540
    QY-200200094≤14402585

    For Die
    ModelCompressor modelAluminum DiesSteel DiesCopper Dies
    QYD-35QY-3516/18/20/22/24/26/30/32/34/3616~500mm2
    QYD-65QY-6526/28/30/32/34/36/38/40/45/5012/14/16/18/20/22/24/2616~800mm2
    QYD-125QY-12526/28/30/32/34/36/38/40/45/50
    /52/55/60
    12/14/16/18/20/22/24/2616~800mm2
    QYD-200QY-20026/28/30/32/34/36/38/40/45/50
    /52/55/60/65/70/75/80
    12/14/16/18/20/22/24/26
    /28/30/32
    16~800mm2

    For Gasoline pump
    ModelMax compression forceRated pressureFlowGasoline volumePowerWeight
    YB-100100Mpa80kN1.6L/min8L4hp

    83kg
