358 Mesh Fence Perfectly suited to high-security applications, providing
excellent see-through visibility extensively used with CCTV. This
high-performance system provides the ultimate protection against
anti-climb & cut through. Suitable to be used in schools, retail
parks, business parks, utility sites, airports, secure units.
Detection systems are fully compatible with 358 Mesh Fence 358 Mesh Fence is designed for demanding applications. The system
can have multiple additional features to aid additional security
including detection and electrified fencing

Panels | Posts |
|
|
|---|
|
| Total number of fixings |
|---|
Inters | Corners |
|---|
Fence height meters | Panel size
H & W | Wire diameter mm | Clamp bar 40 x 5 mm | Post centers mm | Hanging bracket | Hanging bracket |
|---|
| 2 | 2000 x 2515 | 4 | 2 | 2480 | 8 | 16 | | 2.4 | 2404 x 2515 | 4 | 2 | 2480 | 9 | 18 | | 2.7 | 2430 x 2515 | 4 | 2 | 2480 | 9 | 18 | | 3 | 3000 x 2515 | 4 | 2 | 2480 | 9 | 18 | | 3.3 | 3300 x 2515 | 4 | 2 | 2480 | 9 | 18 | | 3.6 | 3600 x 2515 | 4 | 2 | 2480 | 10 | 20 | | 4 | 4000 x 2515 | 4 | 2 | 2480 | 11 | 22 | | 5 | 5000 x 2515 | 4 | 2 | 2480 | 12 | 24 |
Please note: Hole centers on fixing detail can be reduced from
304mm to 152mm for additional security. The post section is
determined by the height of the fence.

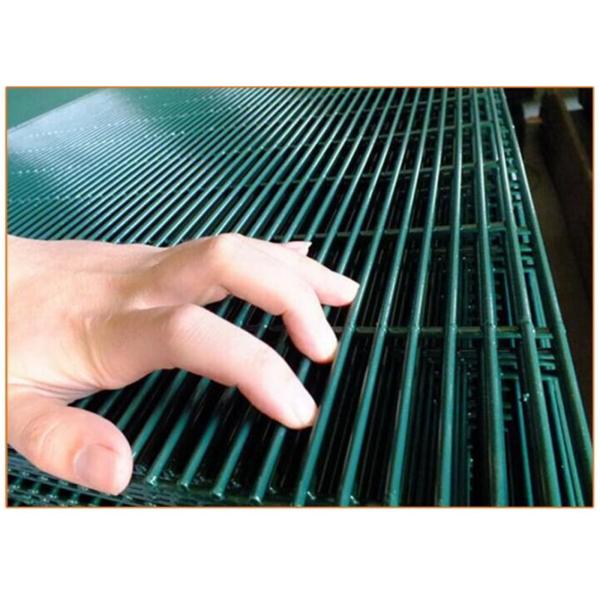

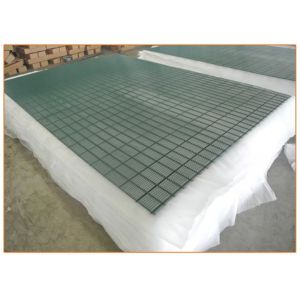

358 Mesh Fence Heights 1.8 meters, 2.0 meters, 2.4 meters, 2.7 meters, and 3.0 meters. 358 Mesh Fence size 75mm x 12.5mm produced with 4.00mm +/- 0.10mm wire. 358 Mesh Fence Panels Manufactured using 4mm wire welded at each intersection creating a
strong and durable panel, the mesh aperture consists of a 76.2 x
12.7mm mesh spacing providing ultimate protection against climbing
and cut-through with excellent see-through visibility! 358 Mesh Post system Standard posts are manufactured from 60 x 60 up to 2.4m high,
rolled hollow section and include stepping provisions to suit
on-site conditions. All posts include bolt-through or threaded
inserts. Specially designed PROFIX Securing clamp system is used
for quick and easy installation. Extra length posts can be used to
increase the fence heights above standard heights. Posts 60 x 60 x 3 RHS c/w clamp bar and M8 cup square bolts complete with
cone nuts through posts. 80 x 40 x 3 RHS c/w clamp bar and M8 cup square bolts complete with
cone nuts through posts. 80 x 80 x 3 RHS c/w clamp bar and M8 cup square bolts complete with
cone nuts through posts.
Applications The SECURE GUARD-358 system is suitable for high-security
applications. Gates Standard gates are available or tailored-made to suit your
requirements. All gates are supplied with rear hung adjustable
hinges, pad-lockable drop-bolts, multi-holed to suit site
conditions complete with anti-climbPROTECTORGATE slide latch. See
our gate range for further details.

|
