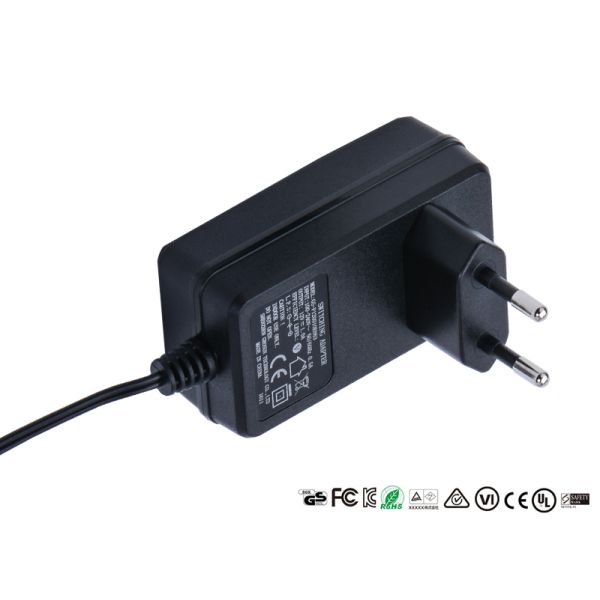

CE FCC 12W AC DC Power Adapter 1000mA EU 9V 12v 24v 1A 2A Power
Supply
Output ratings
| Outout(V) | Ouptput(A) | Power | DOE VI |
| 9V | 1000mA | 9W | YES |
| 9V | 1200mA | 11W | YES |
| 12V | 1000mA | 12W | YES |
| 15V | 1000mA | 15W | YES |
| 18V | 1000mA | 18W | YES |
| 5V | 3000A | 15W | YES |
Description
1. All range voltage input.
2. High efficiency,low loss
3. Meet" European commission of energy"
4. Built in EMC/EMI filter.
5. You can choose the output voltage/current arbitrarily.
Electric performance
1. Output power(max):90-120W
2. Input voltage:90-264Vac
3. Input frequency:47-63HZ
4. Depletion(no load):<0.1W min
5. Efficieny(max):85%
6. Output voltage:DC9V 12V
7. Output current:1A
8. Short circuit protection,over load protection:can
continuous(auto recover),
| Product Specifications: | |
| Model | ZF120A-0901000 |
| Mode | Constant voltage ac dc adapter |
| Connection | Wall Plug tyype |
| Input | 90-264VAC, 50/60Hz |
| Output | 9V 1.0A 9W |
| Energy efficiency | Level 6 |
| DC cord length | 1.2m/1.5m |
| DC jack size | 5.5*2.5mm/5.5*2.1mm/3.5*1.35mm/4.0*1.7mm/2.5*0.7mm,
7.5*5.0mm,6.0*3.0mm,etc. |
| Dimension(L*W*H) | 74*41*27.5mm; |
| AC plug | US/EU/AU/UK/KR |
| MTBF | 100000 hours |
| Burn-in test | Full load 4 hours 100% |
| Certifications | class 2 UL1310 / cUL / UL / level VI / CE / TUV / GS / FCC / SAA /
RoHS / CB / C-Tick / RCM |
| Protections | Short circuit protection, over load protection, over voltage
protection,drop resistance... |
| Working environment | -10°C~+40°C 5%~90%RH |
| Storage environment | -20°C~+85°C 5%~95%RH |
| Cooling method | Natural cooling down |
| RoHS compliant | Yes |
| Warranty | 36 months |
| Case material | V0 Fireproof |
| Color | black or other color as customers' requirement |
Application
Our products are wildly used for Modem,Router,LED Lighting,LED
Strip,CCTV camera,Monitor,Printer,Door Systerm,Small House hold
Appliance,LED Driver,Powerline Wifi,Mini Electronic Device,Massage
Chair,Laptop,Air Purifier,Air Humidifier,Vacuum Cleaner,Medical
Machine,LCD,Mobile Phone,MP3/MP4,....
FAQ
1. Q: Do you offer samples for testing?
A: Yes,we offer free samples for testing
2. Q: What is the warranty?
A: All power adapters come with 3years guarantee.
3. Q:Do you have certificates for your products?
A :Yes,we have UL/CUL,FCC,RoHS,CE,KC,SAA,TUV
GS,PSE,KCC,NOM,S-Mark,BSMI Certifications.
4. Q: Can you design the new housing based on our design?
A: We have professional design team to meet any of your request.one
week make up sample. 30days sample test 45days start to MP.
5. Q: What's the main product of you factory?
A: We are the supplier of switching power supply for 1-150W,
including wall plug adapter,battery charger,desktop adapter.
6. Q: Do you have some new product coming?
A: Yes,we will post new products in our website
www.highflytech.en.alibaba.com and inform all customers.
7. Q:What's your payment item?
A: Our regular payment is T/T in advance, Credit Card , E-Checking,
Paypal and Western Union.
8. Q: What's your lead time?
A: 1-3 working days for sample ready,12days for 1000pcs,15days for 5000pcs…
9. Q: How do you control the quality?
A: Products 100% should pass 10 progress testing,after OQC
inspection then packing.
