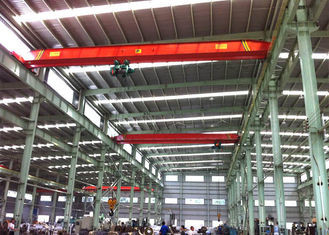

Yello Blue Industrial Travelling Bridge Crane , 12 Ton / 15 Ton Overhead Beam Crane

    Buy cheap Yello Blue Industrial Travelling Bridge Crane , 12 Ton / 15 Ton Overhead Beam Crane from wholesalers

    Buy cheap Yello Blue Industrial Travelling Bridge Crane , 12 Ton / 15 Ton Overhead Beam Crane from wholesalers
    • Buy cheap Yello Blue Industrial Travelling Bridge Crane , 12 Ton / 15 Ton Overhead Beam Crane from wholesalers

    Yello Blue Industrial Travelling Bridge Crane , 12 Ton / 15 Ton Overhead Beam Crane

    Ask Lasest Price
    Brand Name : Major
    Model Number : LDA
    Certification : CE/ISO/GOST/SGS/BV/TUV
    Price : Negotiable
    Supply Ability : 20000 Sets Per Year
    Delivery Time : 15days - 100days
    • Product Details
    • Company Profile

    Yello Blue Industrial Travelling Bridge Crane , 12 Ton / 15 Ton Overhead Beam Crane

    12 Ton / 15 Ton Single Girder Overhead Crane , Industrial Travelling Bridge Cran

    Features:
    Tight dimension, low building headroom, light dead weight and light wheel load.
    It is a light duty track traveling crane with trajectory which applies to and used at machinery, assembling sites and warehouses.
    This product adopts ground control and works at a temperature of -25--40 centigrade. It is prohibited to use the equipment at combustible, explosive or corrosive environment.
    The crane applies to works and storehouses where it is ≥100 mm height between the rail surface and the rafter of roof truss.
    The trolley forms a set with electric hoist, The mechanism of crane is nimble, with safe and reliable motion. It is capable of designing and making non-standard hoisting equipment.


    Single Girder Overhead Crane Drawing

    5~20 T Single Girder Overhead Crane With Eleltric Hoist , Industrial Bridge Cranes

    Lifting capacity (T)1, 2, 3, 5, 10T16, 20T
    Span(M)7.5-22.5M
    Crane traveling mechanismTraveling speed(m/min)203045607520
    Reducer ratio58.7839.3826.3619.3715.8858.78
    MotorModelZDY21-4ZDY21-4ZDY122-4
    Power(kw)2× 0.82× 1.51.5× 2
    Rotation (m/min)13801380
    Lifting mechanism
    (electric hoist)& electric hoist traveling mechanism
    Electric hoist modelCD1/MD1MD1/HC
    Lifting speed (m/min)8, 8/0.8 7, 7/0.73.5 3.5/0.35
    Lifting height (m)6, 9, 12, 18, 24, 3012, 18, 24, 30
    Traveling speed (m/min)20(30)20(30)
    MotorTaper Squirrel-cage typeTaper Squirrel-cage type
    Work dutyA3-A5
    Power supply380V 50HZ three phase
    Wheel diameter270mm370mm
    Width of trail37-70mm37-70mm
