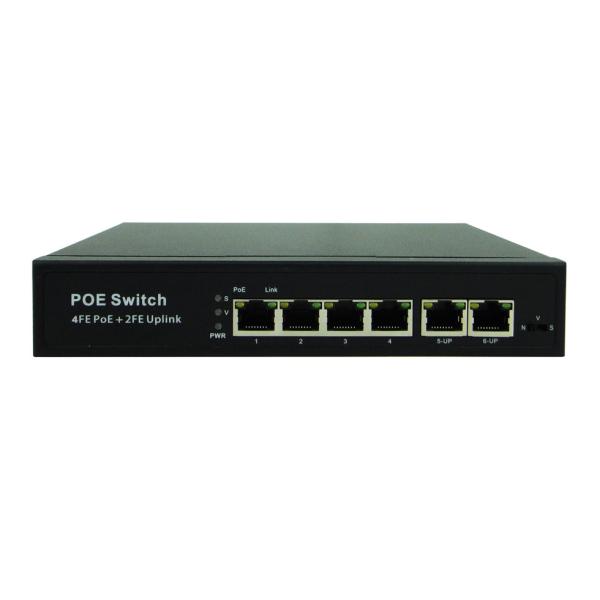

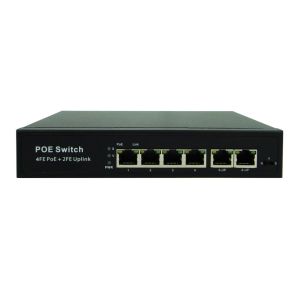

POE-S2004FB (4FE POE + 2FE Uplink, Built-in 80W, 1.6G, IEEE802.3af/at)
Overview
POE-S2004FB is 4 port Power over Ethernet Switch that comes with 4
ports 10/100Mbps PoE and 2 ports 10/100Mbps uplink, it is
IEEE802.3af/at compliant, equipped with 80W built-in regulated
power supply source.
It comes with default normal free communication among each PoE
ports, VLAN and 250m super remote transmission total 3 kinds of
optional different operating modes, it’s widely apply to security
surveillance, wireless AP, VoIP phone and other compatible powered
device.
Key Features:
◆ 4 10/100Mbps PoE port + 2 10/100Mbps uplink port
◆ Compliance with IEEE802.3af/at, support full port advance
standard detection
◆ Flow control: Full-duplex: IEEE 802.3x; Half-duplex: back
pressure.
◆ Support Auto MDI/MDIX, Store-and-forward switching, 1.6G
bandwidth.
◆ Max 30W for every single port, total rated output power 80W.
◆ Support wire speed switching and jumbo frame transmission for all
ports
◆ Plug and play, self-adaption, second-level lightning protection
◆ PoE working status can be read and analyzed through LED
indicators on front panel
◆ Applied to CCTV IP camera, wireless AP, VoIP phone and other
device requiring power over Ethernet cable.
PoE-S2004FB Ports Description
Technical Specs
| Model | POE-S2004FB |
| Ports | 4 10/100Mbps POE + 2 10/100Mbps Uplink |
| Power Input | AC 100-240V, 50/60Hz, 1.0A, 90W(Max.) |
| Power Output | DC 48-57V, 80W(Rated), Max. 30W for every single port |
| Data Exchange | 10/100Mbps, Store and Forward |
| Bandwidth/MAC | 1.6G, 1K |
| Power/Data Assignment | Power: pin 1,2 “+”, pin 3,6 ”-”; Data: pin 1,2,3,6 |
| Ambient Environment | Operating temperature: 0~40℃ |
| Storing temperature: -40~70℃ |
| Operating Humidity: 10%~90% RH, No condensing |
| Storing Humidity: 5%~90% RH, No condensing |
| Network Protocol | IEEE 802.3 Ethernet media access control protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af/at Power over Ethernet cable pairs or device IEEE 802.3x Flow control IEEE802.1q VLAN Network bridge operation |
| Data Speed | Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex |
| Network Medium | 10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m) |
| System Mode | Standard Free communication; VLAN Port Isolation; 250m Supper remote transmission, 3 modes switchable. |
| Safety/Certificate | CE, FCC, RoHS |
| Warranty | 1 Year (Implied) |
| Size/Weight | POE Switch Size: 190mm*130mm*33mm (L*W*H) Packing Box Size: 300mm*205mm*55mm (L*W*H) Net Weight: 0.9kg, Gross Weight:1.1kg |
Application Diagram
