    Seamless Round Structural Steel Tubing EN10216-1 1-30mm Wall Thickness

    Ask Lasest Price
    Brand Name : TORICH
    Model Number : EN10216-1
    Certification : ISO9001, ISO14001, TS16949
    Price : USD600-900/ton
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000Tons per Year
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    Seamless Round Structural Steel Tubing EN10216-1 1-30mm Wall Thickness

    Products Description
    TORICH EN10216-1 1-30mm Wall Thickness Structural Steel Pipe Seamelss Round Structural Steel Tubing
    Key Word
    Seamelss Structural Steel Tubing
    Material
    P195TR1 , P195TR2 , P235TR1 , P235TR2
    Size
    OD: 10.2-711mm; WT: 1-100mm; Length: max12000mm
    Technique
    Cold Drawn Seamless
    Application
    For Manufacturing Pipelines, Vessel. Euqipment.pipt Fittings And Steel Structure
    Manufacturing
    The tubes are manufactured by a seamless process
    Appearance
    The tubes are free from exernal and internal suface defects that can be detect by visual examination
    Delivery condition
    Hot formed:
    TR1 As formed or normalized or normalising-formed
    TR2 Normalized or normalising-formed

    Hot formed + cold finished:
    TR1 and TR2 Normalized

    Chemical Requirement

    Steel Grade
    C, max
    Si, max
    Mn, max
    P, max
    S, max
    Cr, max
    Mo, max
    P195TR1
    0.13
    0.35
    0.70
    0.025
    0.020
    0.30
    0.08
    P195TR2
    0.13
    0.35
    0.70
    0.025
    0.020
    0.30
    0.08
    P235TR1
    0.16
    0.35
    1.20
    0.025
    0.020
    0.30
    0.08
    P235TR2
    0.16
    0.35
    1.20
    0.025
    0.020
    0.30
    0.08
    P265TR1
    0.20
    0.40
    1.40
    0.025
    0.020
    0.30
    0.08
    P265TR2
    0.20
    0.40
    1.40
    0.025
    0.020
    0.30
    0.08

    Mechanical Property

    Steel Grade
    Tensile properties
    Upper yield strength
    ReH min for Wall Thickness T mm
    Tensil Strength
    Rm
    Elongation
    A min.%
    T≤16
    16<T≤40
    40<T≤60
    MPa
    MPa
    MPa
    MPa
    I
    t
    P195TR1
    195
    185
    175
    320-440
    27
    25
    P195TR2
    195
    185
    175
    320-440
    27
    25
    P235TR1
    235
    225
    215
    360-500
    25
    23
    P235TR2
    235
    225
    215
    360-500
    25
    23
    P265TR1
    265
    255
    245
    410-570
    21
    19
    P265TR2
    265
    255
    245
    410-570
    21
    19

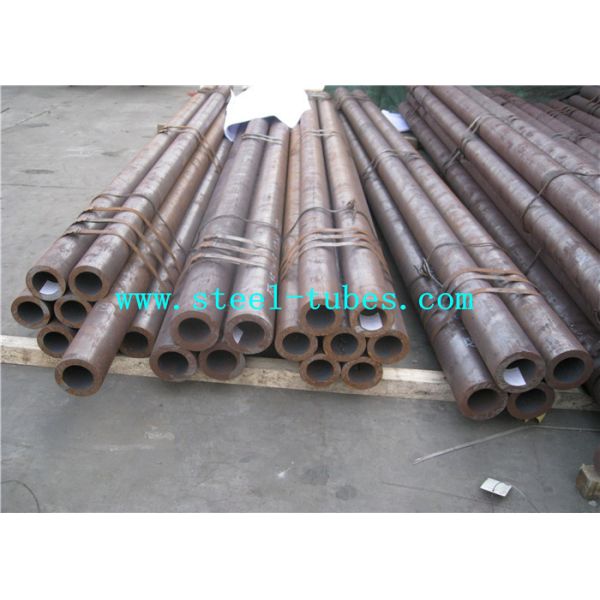

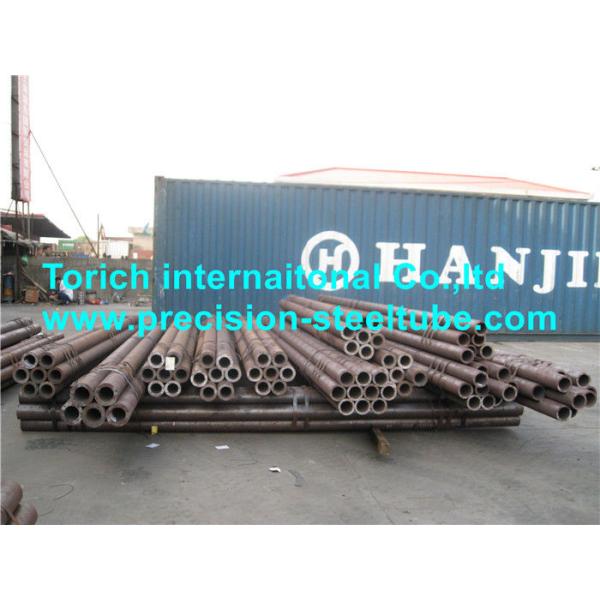

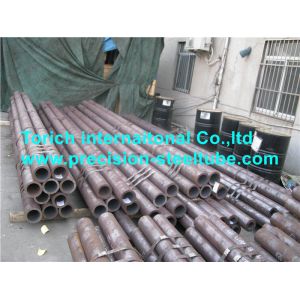

    Product Show


    QUALITY CONTROL:
    1. Incoming Raw Material Inspection
    2. Raw Material Segregation to avoid steel grade mix-up
    3. Heating and Hammering End for Cold Drawing
    4. Cold Drawing and Cold Rolling, on line inspection
    5. Heat Treatment, +A, +SRA, +LC, +N, Q+T
    6. Straightening-Cutting to specified length-Finished Measuring Inspection
    7. Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
    8. Packing and Stocking


    100% of our steel tubes are dimensionally checked
    100% of our steel tubes are visually checked to assure they have a perfect surface condition and no surface defects.
    100% eddy current test and ultrosonic test to eliminate longitudinal and transversal defects.


    FAQ

    Q: Are you trading company or manufacturer ?
    A: A professional steel pipes materials inventor, manufacturer and solution provider

    Q: How long is your delivery time?
    A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

    Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
    A: Yes, we could offer the sample for free charge but need pay the cost of freight.

    Q: What is your terms of payment ?
    A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

    If you have another question, pls feel free to contact us
