33000 Liters 3 Compartments Fuel Tanker Trailer With Airbag
Suspension
I. Advantages of 33000 Liters tanker trailer
1. Reinforced ladder of tank body internal for cleaning and
repairing fuel tank trailer.
2. The capacity of fuel tanker trailer can be made from 30000
liters to 50000 liters capacity. Compartments from 1 to 8.To meet
the clients' different requirements.
3. The main frame and tank body of fuel tanker trailers are
designed by 3D-CAD, have a more reasonable structure.
4. The fuel tanker trailers are made of carbon Steel, it has high
material strength, and easy repair and low maintenance cost.
II. Services and guarantee for the fuel tanker trailer
1. Over 30 years experiences in trailer and truck industrial,
exported hundreds units of trailers and trucks to more than 30
countries in Africa, Southeast Asia. like
Tanzania,Malawi,Zambia,Philippines etc.
2. The fuel tanker trailer have two years free warranty terms for
the I beam, three to six month free warranty terms for the Axles,
suspension etc.
3. Spare parts support services.When the trailers broke down and
need to maintain,we can supply the spare parts for you in very low
price.
4. We can design and produce the fuel tanker trailer as your
requirement, ensure to meet your local road regulation.
III. Specification of carbon steel fuel tanker trailer
| Style | 33,000L 3 Axle Fuel Tank Trailer |
| The thickness of shell&dish | 5mm/ Q345B carbon mild steel |
| Compartment: | 3 |
| Dimension(L*W*H)mm: | 10500*2500*3700 |
| Payload(kgs): | 33000 |
| Tare weight(kgs): | 7000 |
| Kingpin | JOST 3.5” bolt-in |
| Landing gear | JOST 19” C200T |
| Tire size | 385/65 R22.5 (7 sets) |
| Rim size | 11.75*22.5 (13 sets) |
| Axle | BPW brand-13ton |
| Leafs spring | Airbag suspension |
| Brake system | Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air
tank |
| Manhole: | Europe Standard Φ500 |
| Discharge and bottom valve | Pneumatic 3” |
| Painting | As clients' requirements |

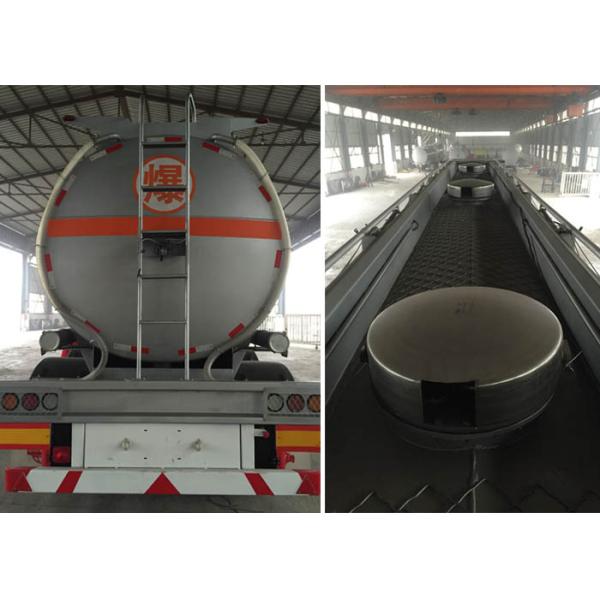

V. Detailed Photo(Tires,Manhole and ladder)
