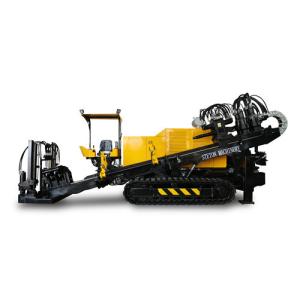

Simple Design Advanced Structure HDD Boring Machine Human - Oriented Design

Name: Simple Design Advanced Structure HDD Boring Machine Human Oriented Design
Brand: STETON
Price: 1 USD

Add to Cart

Horizontal Directional Drilling Machine - S350/700 For narrow space Pipe laying

I KEY point:

Powerful;

Fast travelling and tracking speed;

Can do the big piple line.

II Features:

Equipped with Cummins 153kw engine, large power, stable performance, lower fuel consumption, lower noise, more suitable working in city area.
Power head thrust and rotation adopts cycloid motor from Eaton, with large torsion, stable performance. Rotation have two speed , drilling faster and more torque; Thrust have 3 speed, let the work finished more faster. Thrust and rotation system both use hydraulic control system.
American style surface, looks so powerful.
Simple electric circuit design, low failure rate, convenient maintenance.
Equipped with φ73×3000mm or φ83×3000mm drill rods moderate machine size adapts to narrow and small working area and high efficient construction as well.
Mud flow control system, can depends customer project save water.
Rod auto loading system , Auto anchoring system and push and pulling force increase to 70ton can be choose separate.

III Specifications:

Engine Power	KW	153/2200
Max Thrust force	KN	350/700
Max Pullback force	KN	350/700
Max Torque	N.M	13000/15000
Max Rotary speed	Rpm	138/110
Max carriage speed	m/min	38
Max Mud pump flow	L/min	320
Max Mud pressure	Mpa	8±0.5
Main machine size	mm	6800x22400x22600
Weight	T	12
Diameter of drilling rod	mm	Φ73 or Φ83
Length of drilling rod	m	3
Max diameter of pullback pipe	mm	φ150 – φ1000
Max construction length	m	500
Incidence Angle	°	11～22
Climbing angle	°	14
