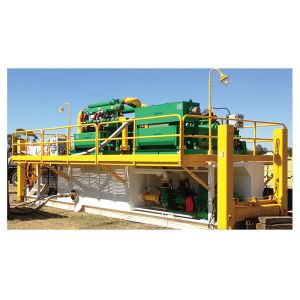

Custom Engineering Mud Recycling System With High Effective Capacity

Mud Recycling system for HDD project mud using, 25m³ with tank

specifications:

1. Capacity: 25m3/h

2. Vibrating motor: 0.45KW x 2pcs

3. Submersible slurry pump: 7.5KW, alloy impeller and shell

4. Cyclone:FX-100GN 1pc

Solid-phase particle size:10um

5. Stainless steel screen:

Upper: 600x900x40mesh

Middle: 600x1100x20mesh

Bottom: 600x1100x30mesh

6. Electric control system:Indian Voltage 415V, 50Hz

7. Dimension:1850x1300x2370mm

8. Weight:1050kg

Mud pots usually use corrugated board to make the sidewall stronger. Slurry tank steel is first sandblasted. We use a gold-epoxy zinc-rich paint from Kansai brand in Japan. The thickness of the first layer is 75μ, the epoxy medium is twice, the thickness is 250μ, and the polyurethane finish is twice. The thickness is 70 μ. Spray 2 layers in the tank as above. Our company is a professional oil drilling fluid slurry tank manufacturer, to provide you with high-quality drilling fluid mud tanks, factory outlets have the advantage of price, and provide you with satisfactory after-sale technical services.

The mud tank will be configured completely with electrical control, lighting, guard rail, necessary pipeline, inlet&output, clean gate, etc.AJT Mud tanks is the main container holding well drilling fluid. It is widely used in oil and gas drilling, HDD, CSM drilling, slurry separation, tunnelling and mining industries.In OGEM equipment you can get ideal design on mud tanks.We'll consider complete mud tanks system configuration. Such as proper space and position for shale shaker, mud cleaner, centrifuge decanter, mud mixing hopper, centrifugal pumps, etc. So we have shaker tank, suction tank, mixing tank terms.

"Steton Machinery", founded in 2017, which is specialized in research & development, manufacturing , sales and service for Horizontal Directional Drilling Machine and Water Well Drilling Machine. Our main products are "S" series of Horizontal Directional Drilling Machine, and "SC" series of Water Well Drilling Machine.

Depending on our advanced design tools、manufacturing processes, international management system and continuous technological innovation. We got the highly- degree recognization to our product quality from both domestic and foreign customers. Our production capacity 150 sets per year now. "Steton Machinery” takes“Customer, Team, Staff, Innovation and Efficiency”as core value. We aim to become the first-class enterprise in international machinery industry.
