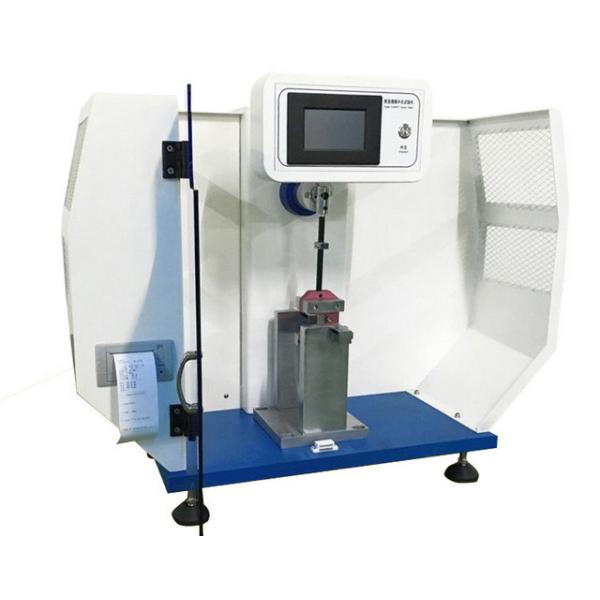

Digital LCD Charpy Impact Testing Machine with Built-in Printer for
Plastic-hard Material
Brief Introduction:
The digital display Charpy impact tester is mainly used for the
determination of the impact toughness of non-metallic materials
such as hard plastics, reinforced nylon, glass steel, ceramics,
cast stone, and electrical insulating materials.
It is an ideal test equipment for the chemical industry, research
institutes, universities, and quality inspection departments.
Executive Standards:
ISO 179-1: 2010 Plastics — Determination of Charpy impact
properties, specifies a method for determining the Charpy impact
strength of plastics under defined conditions
GB/T1043 Plastics Determination of charpy impact strength of rigid
materials
JB/T8762 Charpy impact testing machines for plastics
GB/T 18743-2002 Thermoplastics pipes for the transport of fluids -
Determination of impact by the Charpy method
Highlighted Features:
High-precision intelligent controller with LCD display, intuitive
and accurate reading data, use of carbon fiber pendulum (patent
pending), improving the rigidity of the material in the impact
direction, and focusing the impact mass on the pendulum.
The hammer's center of mass is truly shock-free and has a long
service life. high-resolution digital encoder, angle test accuracy
is higher and more stable.
Impact hammers and ball bearings that meet the aerodynamic
principle, greatly reduce the friction loss caused by the machine
and automatically calculate the final result.
The test data can be saved 12 sets, test results can choose J/m,
KJ/m2, kg-cm/cm, ft-ib/in and other units built-in micro printer to
print test data.
Technical Specifications:
| Display mode | Color touch screen |
| Angle Sensor | Accuracy 0.01 |
| Energy display accuracy | 0.01J |
| Impact speed | 2.9m/s or 3.8M/S |
| Distance | from pendulum center to sample
center: 230mm, 395mm |
| Pendulum lifting angle | 150° |
| Jaw support spacing | 40mm, 60mm, 70mm, 95mm |
| Support blade corner radius | R=1mm |
| Impact blade angle | 30° |
| Impact blade fillet radius | R=2mm±0.5mm |
| Model | JZL-5D | JZL-15D | JZL-50D |
| Pendulum Energy | 1J , 2J, 4J, 5J | 7.5J, 15J | 25J, 50J |
