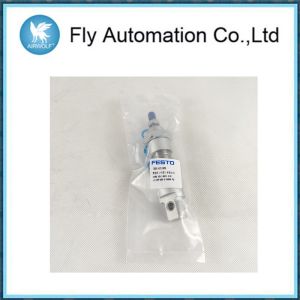

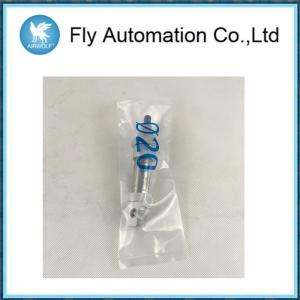

Festo Basic Version Cylinders Silvery DSNU-20-10-P-A 19207
Aluminium Alloy With Position Sensing Gas Cylinder
It's a DSNU series round standard double acting cylinder. DSNU
series cylinder with stainless steel piston rod and wrought
aluminium alloy bearing and end caps. Round cylinders with piston
diameters from 8 to 25 mm. It is a cylindrical metal machine which
guides the piston to move in a straight line reciprocating motion
in the cylinder.
Materials
Piston rod: High-alloy stainless steel
Bearing cap: Anodised aluminium
Cylinder barrel: High-alloy stainless steel
End cap: Anodised aluminium
Seals: Polyurethane, nitrile rubber
Mounting attachments and accessories note
1. Cannot be used on the bearing cap in combination with bellows
kit DADB.
2. Only push-in fittings or one-way flow control valves with
cylindrical connecting thread (M or G thread) may be used for the
compressed air ports in conjunction with the DSNUP.
3. The bellows kit protects the cylinder (piston rod, seal and
bearings) against a wide range of media and thus prevents premature
wear. It can only be used in combination with an extended piston
rod.
Typical Applications
Printing (Tension Control)
Semiconductor (spot welding machine, chip grinding)
Automation Control
Robot
| General technical data |
| Piston Φ | 8 | 10 | 12 | 16 | 20 | 25 |
| Pneumatic connection | M5 | M5 | M5 | M5 | G1/8 | G1/8 |
| Piston rod thread | M4 | M4 | M6 | M6 | M8 | M10x1.25 |
| Constructional design | Piston |
| Piston rod |
| Cylinder barrel |
| Cushioning | P | Flexible cushioning rings/pads at both ends |
| PPV | – | Adjustable cushioning at both ends |
| PPS | – | Self-adjusting cushioning at both ends |
| Cushioning length | PPV [mm] | – | 9 | 12 | 15 | 17 |
| PPS [mm] | – | 12 | 15 | 17 |
| Position sensing | Via proximity sensor |
| Type of mounting | Direct mounting (MH variant only) |
| Via accessories |
| Mounting position | Any |
| | | | | | | |
| Weight [g] |
| Piston Φ | 8 | 10 | 12 | 16 | 20 | 25 |
| Product weight with 0 mm stroke | 34.6 | 37.3 | 75 | 89.9 | 186.8 | 238 |
| Additional weight per 10 mm stroke | 2.4 | 2.7 | 4 | 4.6 | 7.2 | 11 |
