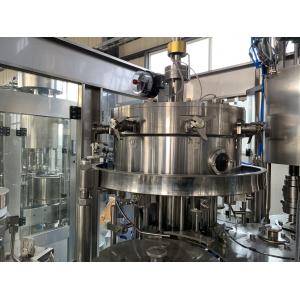

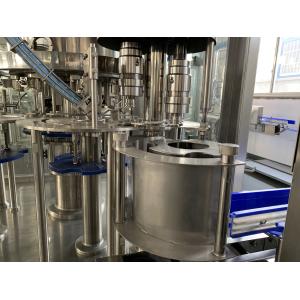

Full Automatic Carbonated Bottling Equipment Beverage Soda Water Filling Machine

Full Automatic Carbonated Bottling Equipment Beverage Soda Water Filling Machine

1200-1500BPH @ 500ML
Food Stage Stainless Steel 304
PLC Control: Simens
Suitable for 0.2-2L Plastic Bottle

Features of Carbonated Beverage Filling Machine
1. Our carbonated beverage filling machine using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

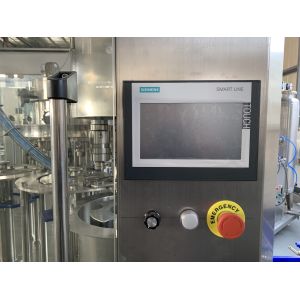

6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

Functions of Carbonated Beverage Filling Machine

Washing Part for Carbonated Beverage Filling Machine
The bottle is blew into the bottle shifting wheel, when the flushing clamp reaches the bottle neck, the jaw will clamp the bottleneck, under the guidance of the rail, the clamp will turn the bottle 180°into an upright position, through second bottle pusher into the filling position.

Filling Part for Carbonated Beverage Filling Machine
The filling part is manly composed of a filling valve and filling transmission parts. The washed bottle reaches the filling position via the bottle shifting wheel. In the mean time, the bottle clamping plate of the filling machine will clamp the bottle and move up to seal the bottle, filling valve will open, send the liquid into the bottle. When the liquid level of the bottle reaches the trachea of the filling valve, the filling will stop.

Capping Part for Carbonated Beverage Filling Machine
The capping part consists of screw heads, capping transmission part, a sorting part and an under cover tube parts. The bottle which has finished filling will enter the capping position via the driving wheel. The photoelectric detection of the detecting signal detects the bottle, send a message to the valve cover, the cylinder cap will open, the caps will be blew into the cover plate by compressed air.

Technical Data for Carbonate Beverage Filling Machine
