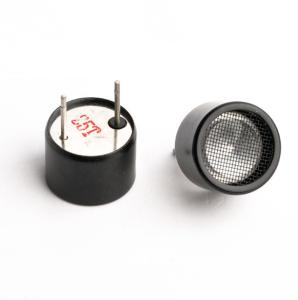

BLACK Open type ultrasonic transducer sensor 40khz sensor transmitter receiver

Name: BLACK Open type ultrasonic transducer sensor 40khz sensor transmitter receiver
Brand: TaiMI
Price: 1 USD

Ask Lasest Price
Brand Name :	TaiMI
Model Number :	TM-1625H12T/R
Certification :	ROHS/REACH
Price :	Negotiable
Payment Terms :	Western Union, MoneyGram, T/T ,PAYPAL
Supply Ability :	10000000/Month
Delivery Time :	2 weeks

Add to Cart

Product Details
Company Profile

BLACK Open type ultrasonic transducer sensor 40khz sensor transmitter receiver

Product Description

Construction	Open type
Using method	Transmitter/Receiver
Center frequency	25KHz±1KHz
Sound pressure level	110dB (0dB=0.02mPa)
Ringing	≤1.2ms
Directivity	65(–6dB)
Capacitance	2500pF±15%
Operating temperature	-30 to +80℃
Storage temerature	-40 to +85℃
Measure distance	0.2～18m
Max.input voltage	20Vrms

dog repeller ultrasonic transducer 40khz black plastic ultrasonic sensor ultrasonic depth sensor

Center Frequency:40.0±1.0Khz
Bandwidt(-6dB) F.O.M.:1.2Khz
Transmitting sound Pressure Level:120dB min.
Receiving Sensitivity:-63dB min.
Nominal Impedance(Ohm):900
Ringing:1.5ms max.
Capacitance:2100pF
Max.Driving Voltage:120Vp-p
Total Beam Angle -6dB : 50°±10°
Operation Temperature:-30to80℃
Storage Temperature: -40to85℃

Packing & Delivery

Sample packaging:
Usually we use the bubble or foam box packaging samples, into the thick sample box, to ensure the safety of packaging.(Box volume is generally controlled in 0.0025m³)
We put the company profile and datasheet in the box, in order to facilitate customer reference.
Product packaging
Inner packing	Usually using foam box for pin type, and box for wire type. SMD type roll tape packing(According to the product selection of different inner packaging to reduce the volume for customers to save transportation costs)
Outer packing	Use strong cartons and pack them

FAQ

1. What is your MOQ?
MOQ depends on different series of products, you can write e-mail or online contact sales staff.
2. When can we get the reply?
We will reply within 24 hours.
3. Can you produce customized products?
We support customer design service.
4. How long is the delivery time?
Usually 2 weeks. It depends on product and quantity.
5. How do I know that you have sent the products out?
We will provide packaging photos and tracking number for you.
