    Gear Box Driven W Beam Highway Guardrail Roll Forming Machine PLC Control

    Ask Lasest Price
    Brand Name : CHBEST
    Model Number : yx-312
    Certification : CE,BV,SGS
    Price : USD10000-USD35000/set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20sets/month
    Delivery Time : 5-60days
    • Product Details
    • Company Profile

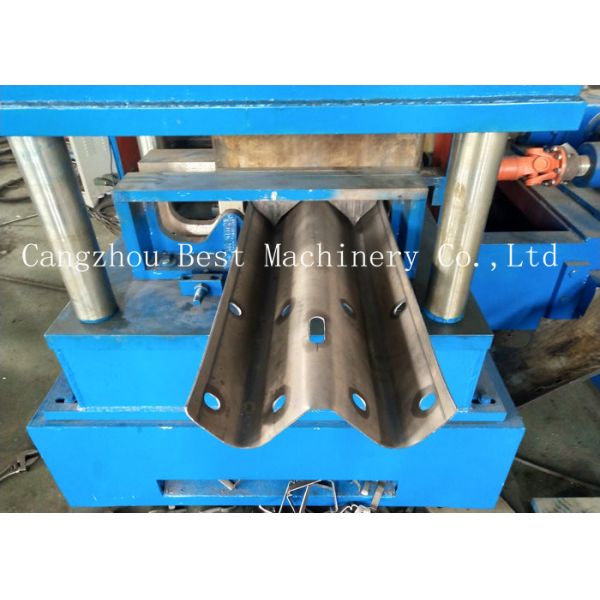

    Gear Box Driven W Beam Highway Guardrail Roll Forming Machine PLC Control

    Gear Box Driven W Beam 2&3 Waves Highway Guardrail Roll Forming Machine


    Components:

    1) 5T hydraulic de-coiler with 2 heads ----------------------------------------------------- 1 set

    2) Feeding and leveling system --------------------------------------------------------------1 set

    3) Pre-punching system-------------------------------------------------------------------------1 set

    4) Roll Forming system---------------------------------------------------------------------------1set

    5) Post cutting system----------------------------------------------------------------------------1 set

    6) Auto stacker-------------------------------------------------------------------------------------1 set

    7) PLC Control System-------------------------------------------------------------------------- 1 set

    8) Hydraulic Station------------------------------------------------------------------------------- 1 set


    Technology Parameters:

    uncoiler
    Loading capacity5T
    Inner diameter450-550 mm
    Steel coil widthAccording to your actual drawing.
    Working speed0-15m/min, adjustable


    feeding table
    usage

    It is used to control the width,

    and position of the steel sheet.

    feature

    The sheet is guided into the machine with correct

    position, to make sure the panel is neat and parallel.


    punching holes
    Materialused to punch holes on the panel
    Featurefast and stable


    cutting system
    Material of bladeCr12MOV, much better than normal Cr12 material
    Hydraulic power4 KW


    Gear box driven


    Product Applications


    Packing and Loading:

    Standard Export Packing.

    1.One 40ft container for loading one set machine with manual decoiler;
    2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
    3. Spare parts and some small parts packed in plastic tooling box;
    4. All Components Fixed by steel wire with Container.


    Our service:

    1. Installation and training:
    a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also tr
    ain your workers/technician face to face.
    b.Without visiting, we will send you user manual to teach you to install and operate.
    C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary th

    ings.

    2. After Service

    a.One year guarantee for whole machine.

    b.24 hours technical support by email or calling

    c.If there is any problem found of the machine, we will repair it for free in one year.


    Terms:

    1. Delivery: 45-60days since received deposit.

    2. Package: Export Standard package for container

    3. Payment: TT(30% by TT in advance, 70% by TT after you inspect the machine we send )

    4. Validity: good for 30days


    Please contact me, get more detail information and machine video...
