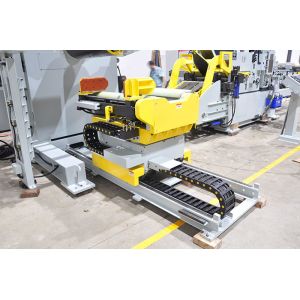

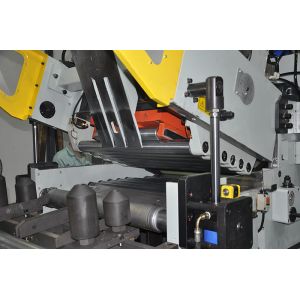

Silicon Steel Coil Stamping Sheet Metal Decoiler Punch Feeder Machine / Equipment

Material frame, silicon steel coil stamping, Ruihui punch feeder machine

In the process of stamping and processing of the motor stator and rotor, silicon steel bars are needed to make a large number of silicon steel punching sheets, and the raw material reserves of the silicon steel strips are in the form of silicon steel coils. In the process of punching silicon steel sheets, the silicon steel coils need to be The material frame rotates continuously.

Thereby, the silicon steel strip is released, and the punched end continuously punches the continuously transferred silicon steel strip to form the desired silicon steel sheet.

The stator-rotor machining design has designed a special-purpose material frame. For the first time, the servo motor and ultrasonic distance measurement method are integrated into the design and production of the material frame. The thickness of the silicon steel coil is measured by ultrasonic ranging to automatically control the material frame unwinding speed. Realize the synchronization and accurate delivery.

In the actual use of the stator-specific material frame, the silicon steel coil is loaded on the material holder tray and driven by the servo motor. The ultrasonic distance measuring head measures the distance between itself and the silicon steel coil, and the silicon steel can be calculated. After the thickness of the roll is received by the motor controller, the speed of the servo motor can be adjusted.

Therefore, the speed of the silicon steel coil is adjusted, so that the speed of discharging the silicon steel strip is always stable, the smoothness and accuracy of the discharge are improved, the quality of the processed rotor and the finished product are fundamentally ensured, and the depreciation of the material rack and the feeder is slowed down. speed.

Specification:

Straigtening performance:

*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provi

RUIHUI founded in 2000, the technology of automation periphery is from Japan. RUIHUI has been learning Japan and Germany technology, and using high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and ruihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industry，and investment less.

Customer case

Manufacturing industry; the United States Lear, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.

And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.

hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.

RUIHUI QUALITY is not the best in the world, and the price is not the cheapest. But we can provide excellent products to help you defeat your competitors.

Products: Feeder machine, Straightener machine, Uncoiler machine, Decoiler with Straightener, 3 in 1 NC Straightener Feeder, Coil handling system, Transfer system, Robot System, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.

At present the company to further develop the market, at the end of 2017, the total investment reached 30 million USD, plant area of more than 20 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.
