UGV And UAV Two Way Communication Mesh Video Data Transmitter and
Receiver
ST9602MD Specs.pdf
ST9602MD User Manual.pdf

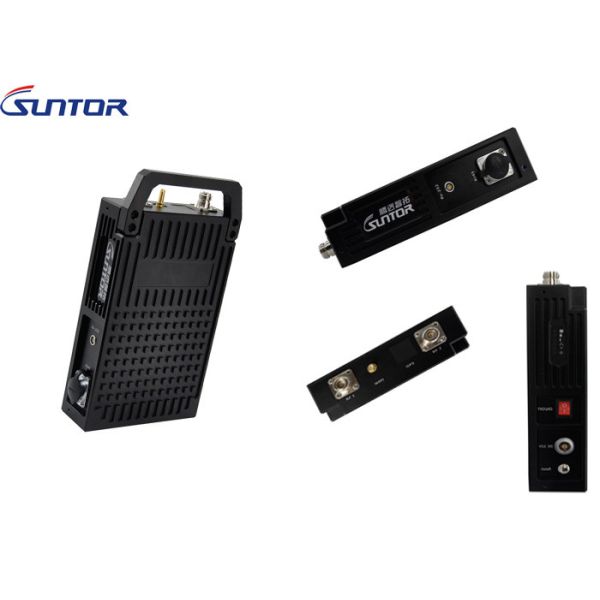

Introduction for ST9602MD
A 2x2 MIMO-based Ethernet radio, ST9602MD is designed for
mission-critical video, voice, and data.Can be used to create
point-to-point, point-to-multipoint, mesh, and mobility networks Up
to 80 Mbps usable throughput for outdoor Ethernet radio links.MPLS
transmission protocol with intelligent QoS.
Main Features
1.Tri Band capability offered in L-band (1.559-1.577GHz), S-band
(2.412-2.462GHz) and UHF-band (300-900MHz)
2.Self-forming, self-healing Mesh architecture
3.Ideal for use for wide area coverage & multi-hop, mobile
applications such as robotics and city NLOS wireless video
transmission
| Model Characteristics |
| Frequency range | 570~590MHz/1400~1420MHz |
| Channel bandwidth | 5M/10M/20MHz(adjustable) |
| Transmission power | 33dBm |
| Modulation Support | BPSK/QPSK/16-QAM/64-QAM |
| Forward error correction | 1/2, 2/3, 3/4, 5/6(option) |
| Digital sensitivity | Maximum -102dBm |
| Transmission rate | Maximum 80Mbps |
| Networking capability | Ad-hoc network 16 hop, nodes more than 42 units |
| Data characteristics |
| MIMO | 2*2 |
| Network interface | 10/100(self-adaption) |
| Serial Interface | RS232(115200bps adjustable) |
| Expansion interface | debug uart*1 (built-in) |
| Network connect time | Uptime approx. 56s, connected standby less than 100ms |
| Encryption | AES 256 |
| Electrical characteristics |
| Voltage | DC 9-28V |
| Current | Standby Current 500mA |
| Max work Current 3A |
| Power dissipation | Average power consumption 10W |
| Physical characteristics |
| Working temperature | -20~+70℃ |
| Storage temperature | -30℃~ +90℃ |
| Measurement | 220mm*155mm*52mm |
| Weight | 1.4KG |
Package
1 x ST9602MD,
2 x Manpack Antenna,
1 x Battery(12V/21Ah),
1 x Manpack Harness,
1 x Power Cable,
1 x RS232 Data Cable,
1 x Battery Charger
1 x Wifi Antenna
1 x Hand Grip
