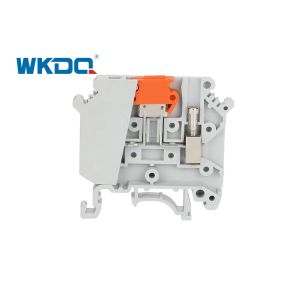

JUK 5-MTK P/P Rail Screw Clamp Terminal Block Low Voltage 800V/16A
with Thin Structure
1. DESCRIPTION
The Knife disconnect terminal block are supplied with test socket
screws for insertion of test plugs. Localize malfunctions quickly
and easily, and perform off-load maintenance.
Made from anti Inflaming Nylon PA 66, Brass metal.
Long durable time.
Reliable and safe connection.
Thin structure saves space.
Low transition resistance,current load capacity can up to 16A.
Perfectly suitable for electrical machine control systems.
With universal foot which can be installed on Din Rail NS 35.
Convenient separation of circuits using lever-type disconnect
knife, isolating plug or rotary contact.
User-friendly current measurement thanks to testing facility on
both sides of the disconnect point.
Safe operation since the disconnect lever is latched into the end
positions.
Clear identification of the disconnect point with color marking.
2. TECHNICAL PARAMETERS
| Model Number | JUK 5-MTK PP, Knife disconnect terminal block |
| Color | Grey, Blue, other color can be customized |
| Length/Height/Wide (mm) | 51/46.5/6.2 |
| Connection method | Screw connection |
| Material | Anti inflaming Nylon PA66 |
| Rated Voltage/Current | 800V/16A |
| Cross section, solid/soft Cable | 0.2-4 mm² / 0.2-4 mm² |
| Conductor Size | 24-12 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, LOGO can be customized |
| Packing Detail | 12.79g/pc, 50PCS/BOX,1500PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
