1. DESCRIPTION

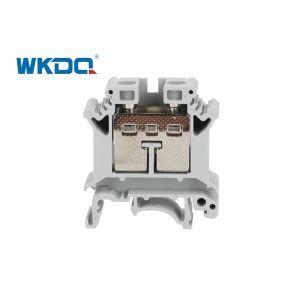

The WonkeDQ JUK series Feed through Terminal Blocks offer savings
in cost, space and time. While meeting the most stringent
requirements: the screw connection can be excellent special in the
wiring of large conductor cross sections.
The JUK universal screw terminal blocks have the typical features
which are decisive for practical applications.
Plastic part made from flame retardants nylon PA66 with brass screw
metal
By using bridge, we can connect multiple conductors easily and
fast.
Corrosion-proof contact point.
Strong contact force and excellent connection.
Ease of handling and a reliable electrical connection.
Reduce the installation costs and speed the wiring.
Easy mounting.
With universal foot which can be installed on Din Rail NS 35.
Most control panels use series of terminal strips or terminal
blocks to connect the control panel wiring to the field wiring.
This kind of wire management function plays an important role in
the terminal block, wire connector or electrical connector
capabilities. And use of identification system, which can realize
uniform identification.
2. Technical Parameters
| Part No. | JUK 1.5N |
| Color | Grey, Blue, other color can be customized |
| Length/Height/Wide (mm) | 42.5/42/4.2 |
| Connection method | Screw connection |
| Body Material | Nylon PA66 |
| Rated Voltage/Current | 800V/24A |
| Cross section, solid/soft Cable | 0.14-1.5 mm / 0.14-1.5 mm |
| Conductor Size | 24-12 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, LOGO can be customized |
| Package | 4.32g/pc, 100PCS/BOX, 1500PCS/CTN |
| Certification | CE/RoHS/CQC/ISO 9001 |
3. Competitive Advantage
1. Reliable and good quality
2. Competitive price
3. Excellent Service: Quickly response
4. Full range products for selection: from 1.5mm2 to 240mm2
5. Flexible to design according to customers’ deman
Since your feedback plays a vital role in the development and
process of our company, we really expect you to leave positive
feedback for us if you are satisfied with our product and service.
Thank you!
