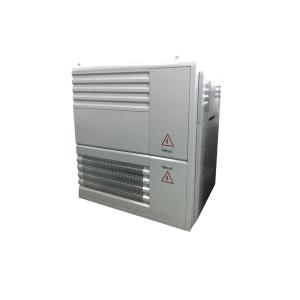

    1000kw Resistive Load Bank / Programmable Ac Load Bank For Testing Generator

    Professional Produce 1000kw dummy load bank for testing generator

    Product Description

    The system consists of 1 sets of AC400-1000KW load bank. The system is made up of two parts of measurement and control and load, mainly including the tank dry type ac load, automatic data acquisition system, automatically loading and unloading control system, the cooling device, auxiliary control, remote control box and PC software and so on.

    Technical Parameter

    Rating Voltage/Frequency400VAC/50Hz, 3 phase 4 wire
    Rated PowerResistive load:1000kW
    Installed CapacityResistive load: 1000kW
    Load Step1,2,2,5,10,20,20,50,100,200,200,200,200kW min step load: 1kW
    PF(Power Factor)1
    Load Tolerance (each step)±5%
    Load Tolerance(overall)±3%
    Display Precision0.5 class
    Control Power380VAC 50Hz
    Wire Connection

    Load power supply input——Copper bar (star coupling “Y”)
    Control power supply input——Busbar

    InsulationF
    Way of WorkingContinuous Working
    Casing Dimensions and Coolingabout 2400*1400*1680mm(length*width*height) Forced air cooling,Horizontal inlet air and vertical cooling
    WeightAbout 1500 kgs / set
    TransportationHoisting, there are lifting lug in top of casing, also the wheel casters can be provided
    Casing ColorGrey(RAL7035)or as you required
    WorkplaceOutdoor
    Ambient Temperature-10℃~+50℃
    Relative Humidity≤95%
    Altitude≤1500 meter
    Atmospheric Pressure86~106kPa
    ContactorSchneider
    FuseDELIXI
    MCUINFINEON
    Data processing softwareKaixiang(self-developed)
    Alloy ResistanceKaixiang(self-developed


    Product Advangent

    System can work with PC software to realize intelligent operation, automatically finish the parameters testing, and create testing data table, curves and reports that can be printed, reduce a lot of manual operation.

    Application:

    1.Manufacturers of standby power generators commonly use load banks to test and tune newly assembled units
    2.generator has been set up in a test cell within the factory, a test engineer uses the load bank to apply a discrete, selectable electrical load to the generator and measure the response stability and endurance.
    3.During this process, the test engineer calibrates and adjusts the generator performance to ensure it meets the intended product specifications and tolerances.
