BFEC DMF-ZF-40SA DMF-Z-76S 1-1/2" Silvery Vertical Angle Aluminium
Pulse Jet Valve
DMF-Z
SOLENOID/DIAPHRAGM VALVES

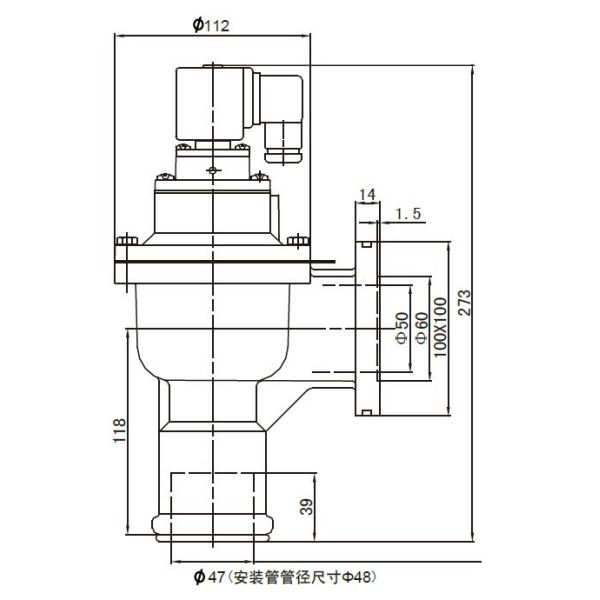

The DMF-Z solenoid/diaphragm valve is kind of vertical-angle valve,
with an included angle of 90° between inlet and outlet. It
simplifies the connection between gas bag and blowing tube of a
dust collector. It can provide stronger airflow and meet dust
removing requirements.
| Type and Specification |
| No. | Type | Diameter | Number of
diaphragm | Size of inlet
diaphragm | Outlet orifice
connection | Weight
kg | Kv/Cv |
| mm | Inch |
| 1 | DMF-Z-20 | Φ20 | 3/4" | 1 | G3/4" | G3/4" | 0.7 | 17.55 / 20.48 |
| 2 | DMF-Z-25 | Φ25 | 1" | 1 | G1" | G1" | 0.8 | 26.16 / 30.53 |
| 3 | DMF-Z-40S | Φ40 | 1-1/2" | 2 | G1-1/2" | G1-1/2" | 1.4 | 45.82 / 53.47 |
| 4 | DMF-Z-50S | Φ50 | 2" | 2 | G2" | 2G" | 2.4 | 61.24 / 71.47 |
| 5 | DMF-Z-62S | Φ62 | 2-1/2" | 2 | G2-1/2" | G2-1/2" | 3.5 | 129.26 / 150.85 |
| 6 | DMF-Z-76S | Φ76 | 3" | 2 | G3" | G3" | 4.3 | 159.95 / 186.66 |
| 7 | DMF-Z-102S | Φ102 | 4" | 2 | G4" | G4" | 7.3 | 242.35 / 282.82 |
| 8 | DMF-2L-B | Φ20 | 3/4" | 1 | G3/4" | Φ27 | 0.75 | 16.95 / 19.78 |
| 9 | DMF-ZF-25 | Φ25 | 1" | 1 | Φ34 | Φ34 | 1.0 | 26.16 / 30.53 |
| 10 | DMF--ZF-40S | Φ40 | 1-1/2" | 2 | Φ48 | Φ48 | 1.6 | 45.82 / 53.47 |
| Technical Index |
| Working Pressure | 0.1~0.8MPa |
| Working Media | Clean air |
| Voltage | DC24V | AC110V | AC220V |
| Current | 0.8A | 0.46A | 0.23A |
| Temperature Level | 1 | | 3 |
| –25℃～ 80℃ | | –25℃～ 230℃ |
| –13℉～176℉ | | –13℉～446℉ |
| Relative Humidity of Air | ≤85% |
| Protection Class | IP65 |
| Diaphragm Life | One million blows or 3 years |
| Material Construction |
| Body | ADC12 diecast aluminium |
| Armature | 430FR stainless steel |
| Diaphragm & Seals | Nitrile |
| Spring | 321 stainless steel |
| Screws | 302 stainless steel |
Quality Standards
The company for the products are brand new original products, no
second-hand and refurbished products, or leave a compensable ten
and return the full amount, but the buyer due to our purchase of
model error is not responsible for returns, another of the
company's sales of products enjoy one year from the date of
shipment quality assurance, according to the original quality
standards, during warranty with product problems, need confirmation
testing by the manufacturer, the supplier to be solved, the demand
side due to storage, use, poor maintenance caused by lower-quality
product, and not raise objections.
After-sale service
We can provide a series of after-sale service, such as product
introduction, mounting, debugging, technical support and so on.
