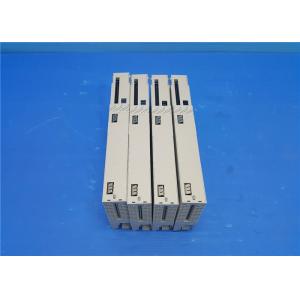

Schneider Automation 24 VDC IN TSX Quantum Modicon Output Module
140DDO35300
SPECIFICATION
Manufacturer: Modicon Quantum
Series: Quantum I/O
Weight: Ask
Product or component type: Dc discrete output module
Discrete output number: 32
Group of channels: 4 groups of 8
Discrete output logic: Negative logic (sink)
Addressing requirement: 2 output words
Discrete output voltage: 24 V DC
Output voltage limits: 19.2...30 V
Absolute maximum output: 56 V for 1.3 s decaying pulse
Voltage drop: 0.4 V 0.5 A
Maximum load current: 4 A per group
16 A per module
Surge current: <= 5 A for 0.0005 s
Response time: <= 1 ms at state 1 to state 0
<= 1 ms at state 0 to state 1
Leakage current: 0.4 mA 30 V
Load inductance: Inductance(H) = 0.5/((current(A))² x (switching
frequency(Hz))) 50 Hz
Fault indication: Blown fuse
Loss of field power
Associated fuse rating: 5 A per group
3 A each point
Isolation between channels and bus: 1780 Vrms DC for 1 minute
Isolation between group: 500 Vrms DC for 1 minute
Protection type: Internal output protection by 5 A fuse per group
Power dissipation: 1.75 W + (0.4 V x total module load current)
Marking: CE
Local signalling: 32 LEDs green input status
1 LED red external fault detected (F)
1 LED green bus communication is present (Active)
Bus current requirement: 330 mA
Module format: Standard
Discrete Output Module Modicon Quantum - 32 O Solid State
Quantum | 140DDO35300 | Modicon | 140 DDO 353 00 | DC OUTPUT 24VDC
4X8 SOURCE
The DC Output 24 VDC 4x8 Source module switches 24 VDC powered
loads and is for use with sink devices. When field wiring the I/O
module, the maximum wire size that should be used is 1-14 AWG or
2-16 AWG; the minimum size is 20 AWG Each group is protected with a
5 A fuse to protect the module from catastrophic failure. The group
fuse will not be guaranteed to protect each output switch for all
possible overload conditions. It is recommended that each point be
protected with a 3/4 A, 250 V fuse. Also, Turn off power to the
module and remove the field wiring terminal strip to gain access to
fuses. Failure to follow these precautions can result in injury or
equipment damage.
Estimated Shipping Size
Dimensions: 2" x 10" x 4" (4 cm x 25 cm x 10 cm)
Weight: 1 lbs 2 oz (0.50 kg)
