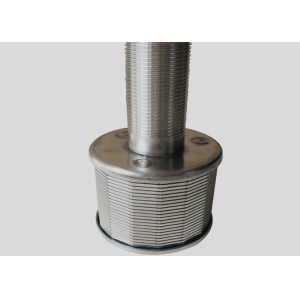

Mini 0.02 mm Water Johnson Strainer Nozzle
1.Introdution of Wedge Wire Filter Nozzle
SS wedge wire screen sand filter nozzle for water treatment is
composed of V-profile wire stainless steel which is spirally
wrapped
in certain equal slot. To maintain the slot size around inside and
add extra strength are mounted. It has each cover for both ends of
nozzle.Each wire and rod are made by spot welding. and fitting pipe
is adjusted according to the thickness of set bottom plate.
Nozzle is completed by welding fitting pipe to a cover of down end
after setting screw according to the type of nut.
2.Specifition of Filter Nozzle
Type | Slot (mm) | Dimension | Flow Rating (M3/H) |
D(mm) | H(MM) | L(MM) | Thread | Fittings |
hh-0.5 | 0.25 | 45 | 45 | 90/request | M, NPT, G, PT, Z,
| SS Gasket, Rubber gasket, Nut | 0.5 |
hh-1.0 | 0.25 | 53 | 45 | 90/request | 1.0 |
hh-1.5 | 0.25 | 53 | 45 | 90/request | 1.5 |
hh-2.5 | 0.25 | 57 | 55 | 100/request | 2.0 |
hh-3.0 | 0.25 | 70 | 70 | 120/request | 3.0 |
3.Application of Johnson Screen Panels/Wedge Wire Screen Plate
Filter screen nozzle is mainly installed in the filter, water
filter, oil filter, such as filtering apparatus, is used in the
water, oil,
gas and resin rosin and medium filtering, can also be used for
water treatment, water softening and sea water into fresh
water, etc., can also can be used in food chemical and other
industries filtration equipment.
4.Advantages:
The unit price of stainless steel ladder is several times higher
than that of plastic water cap, but its advantages far outweigh its
value.After replacing the stainless steel cap, it can hardly be
damaged and has a long service life.The original plastic water cap
is easy to crack and run off the resin, and it will endanger the
safety of the system.
5.Characteristics of the Filter Nozzle
- Type 316L stainless steel construction.
- Continuous slot design provide large circulation area
- Standard nozzle are 2in/51mm diameter and can be attached to the
plate either with threaded end fittings or "L" blots.
- Standard slot opening is typically range between 0.006”(0.15mm),
and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media,
Other slot sizes are also available.
- Wedge wire screen is highly resistant to plugging.
- Choice of either 3/4” NPT or 1” NPT fittings are available from
stock. Other styles, such as tee-bolt mountings, and drop tubes are
readily available.
- Unaffected by temperature, corrosion resistant, aging resistant,
long life span, easy change, saftey and enviormental friendly.
