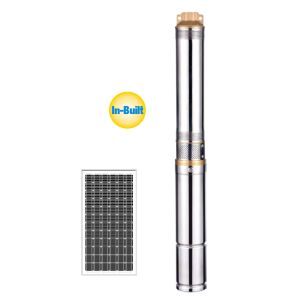

3LCII Series Plastic Impeller Solar Water Well Pumping Systems In
Built Controller
Pump Home Pump
IN-BUILT CONTROLLER SOLAR PUMP
1.Easy installation and easy operation, connect with solar panel
directly, no need
external controller
2.Can be powered by both solar panel and battery
3.Brushless permanent magnetic motor, controller inside, long
working life and
high working efficiency
4.Over voltage and under voltage protection
5.Over current protection
6.Locked rotor protection
7.Lost phase protection
8.Reverse protection
9.MPPT function( maximum power point tracking)
10.Low temperature rise
Material Of Pump
◎ Outlet: 201 stainless steel
◎ Pump head: 201 stainless steel
◎ Pump body: 201 stainless steel
◎ Impeller: Plastic impeller
◎ Motor: Permanent magnet DC brushless motor
◎ Cable: 2M
◎ Oil cooling
◎ MPPT function controller
Model Analysis
3LCII2.5/20-24/250
3:3 inch pump body dimension
LCII: LARENS centrifugal In-Built impeller solar pump
2.5: Max flow
20: Max head
24: Pump voltage
250: Pump power
Product Features
◎ Only use it for clean water
◎ Max head is 150M. max flow is 6.5M3/H
◎ Fit for small farm, livestock
◎ Warranty: 1 year
