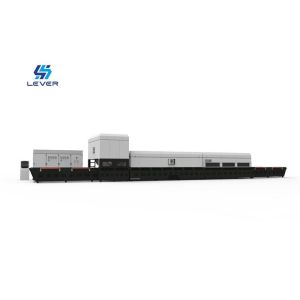

DTFB-SERIES Double Heating Chamber FLAT & Bend GLASS TEMPERING FURNACE
| Model | Max. Loading Area | Min.Glass Size | Thickness | Capacity |
| (mm) | (mm) | (mm) | (Batch/Hour) |
| LV-DTFB2442-15L | 2440 x 4200 | 150 x 280 | 4～19 | 30～40 (5mmfor example) |
| LV-DTFB2450-18L | 2440 x 5000 | 150 x 280 | 4～19 | 30～40 (5mmfor example) |
| LV-DTFB3060-20L | 3000 x 6000 | 150 x 320 | 5～19 | 30～40 (5mmfor example) |
1. Machine Application:
For producing flat tempered glass and thermal strengthened glass,
which mainly used in the fields of architecture (doors, windows),
shower room, garden fence, elevator, furniture, etc.
2. Main Technical Features:
►. Helix matrix structure for heating oven, which can control the
temperature of each area independently.
►. Full closed heating oven and high quality Insulating materials
with top performance which can ensure a minimum power consumption
and uniform oven temperature.
►. Fault diagnosis system for the heating elements.
►. Advanced & specially designed high-temperature convection fans
shall be applied in convection system to eliminate electro-magnetic
vibration. And there is no need the water cooling system. Also, it
is very easy to make the maintenance and repairment.
►. For the force convection fans, If power off, there is small
generator providing power to convection fan which could avoid any
damage because of high temperature
►. PID temperature control,
►. Preventive function for the wrong operation
►. Synchronous and asynchronous running of each section
►. Power monitoring function
►. Suitable for processing clear float glass, patterned glass,
reflective glass, low-e glass, etc.
