Army Border Perimeter Defensive Barrier Wire Mesh Gabion Box
Introduction of Defensive Barrier :

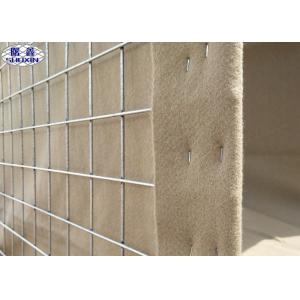

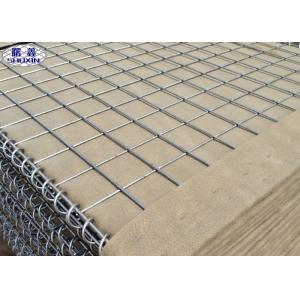

Defensive Barrier is a modern gabion primarily used for flood control and military
fortifications. It is made of a collapsible wire mesh container and
heavy duty fabric liner, and used as a temporary to semi-permanent
levee or blast wall against explosions or small-arms.
Defensive Barrier Material :
It is made of galvanized welded mesh,spring with other fittings,can
be filled with sand,earth,cement,stone,can be used in separate cell
or some cells joint together.
Finish:hot dipped galvanized,galfan coated
Specification of Defensive Barrier :
1) wire diameter: 4mm-5mm
2) hole: 2''x2'',3''x3'',4''x4''
3) hesco size: 0.61x0.61m,1x1m,2.13x2.21m,other size can be
produced as requested.
4) geotextile: in non-woven geotextile,color can be
white,beige-sand color.
Defensive Barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19(Mil 19) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Defensive Barrier Application
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy
and robust solution for emergency flood protection or long-term
wetland restoration
2. Defensive Barriers: Protecting both military and civilian
personnel in dangerous environments demands defensive solutions
that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge
for your employees by
providing protection for up to eight people with Accommodation
Bunker.
4. Rockface: transforms the highly effective wall into an
aesthetically pleasing structure ideal for customer-facing
perimeter security where a more benign appearance is required.
