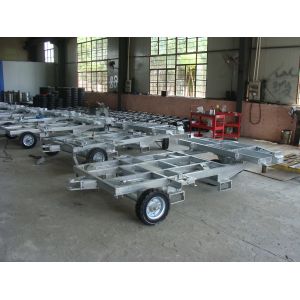

    Flexible Container Pallet Dolly Customize Color Loading / Unloading Function

    Ask Lasest Price
    Brand Name : HF
    Model Number : HF1.6
    Certification : CE ISO
    Price : ANY CURRENCY ; 1492 USD-1900 USD
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000 PCS PER MONTH
    Delivery Time : Depending on the quantity
    • Product Details
    • Company Profile

    Flexible Container Pallet Dolly Customize Color Loading / Unloading Function

    Loading capacity 1600 kg own weight 720 (kg) Aviation container dolly LD3 1.6T platform dimension 1920 x 1630 (mm)


    Product Description

    1. Adopt all the operational comments from A.S. Airports, the design meets over 85% of the requirements;


    2. There 16 galvanized rollers, with thick gauge material, over the working platform for the loading and unloading of containers;


    3. Fool-proof self-locking system in both ends to prevent any disengagement of containers;


    4. A fool-proof design of the rear hitch so as to prevent any detachment of the towed behind;


    5. Brake applies when the tow-bar is in vertical and below horizon.


    6. The turntable type steering makes the turning radius less then 3.5 meters;


    7. Durable solid tire;

    8. The working table turns 360 degrees with stop at every 90 degrees so as the container can be loaded or unloaded on every 90 degrees turning;

    9. Loading mode: both side load and end load;

    10. Suitable for LD1, LD2 and LD3.


    Technical specification and Main component material

    Platform dimension2080 × 1630 mmFrame#8 standard channel steel
    Height of the platform508 mmRoller¢76 × 4 mm
    Tire400 -- 8Tow bar#12 standard channel steel
    Loading capacity1600 kgWork way3 mm checker plate
