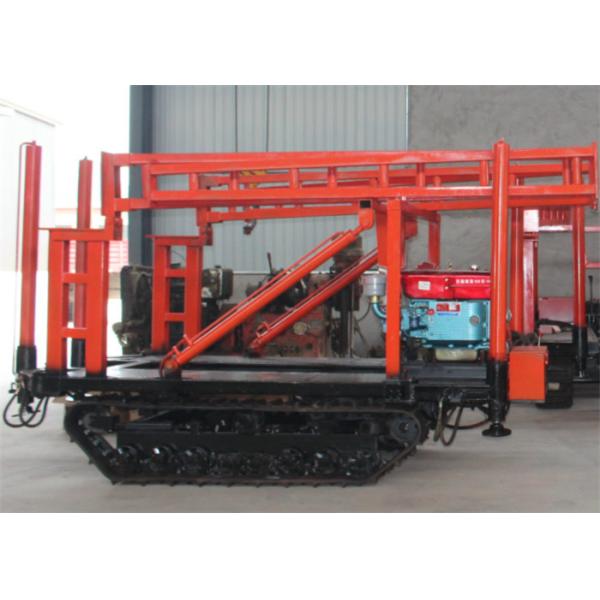

    Professional Water Well Drilling Rig 380V 200m Depth With S1105 18HP Diesle Engine

    Ask Lasest Price
    Brand Name : ShiTan
    Model Number : ST-200
    Certification : ISO9001
    Price : USD3800-USD5200/SET
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000SETS/YEAR
    Delivery Time : 5-10 days after we receive the prepaid
    • Product Details
    • Company Profile

    Professional Water Well Drilling Rig 380V 200m Depth With S1105 18HP Diesle Engine

    200m Depth Tractor Mounted Water Well Drilling Rig/Machine To Dig Deep Wells

    Product Application

    water well drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, kinds of hole in concrete structure, river levees, subgrade grouting hole, drilling and direct grouting, civil wells and earth temperature central air-conditioner, ect.

    SPECIFICATIONS FOR ST200 WATER WELL DRILLING RIG
    Unity machine parameter
    Drilling depth
    200m
    Max. open hloe caliber
    300mm
    Drilling angle
    90°~75°
    Drill weight (No include power)
    600kg
    Unity machine dimensions
    1730*860*1360mm
    Spindle
    Spindle speed
    130, 300, 480, 730, 830, 1045r/min
    Spindle stroke
    450mm
    Hoist
    Max.single line hoisting capacity
    1600kg
    Single line lifting speed
    1.06, 0.67, 0.32m/s
    Wirerope caliber
    13mm
    Wirerope cubic measure
    35m
    Hug floodgate caliber
    254mm
    Hug folldgate belt width
    50mm
    Distance between drill and hole
    230mm
    Mud pump
    Type
    Horizontal single urn twin-action
    Displacement
    170L/min
    Maximum pressure
    1.5Mpa
    Work pressure
    0.7Mpa
    Power
    Diesle engine
    S1105 18HP
    Electric motor
    Y160M—4 15KW

    Contact US


    Jack An

    Mob:86-133 1595 5856

    Web: www.waterwell-drillingrig.com
