Custom Military Defensive Barriers For Armed Forces Rapid
Construction
Military Gabion Box also known as the Concertainer, is a kind of
wire-mesh steel basket, hinged together with a helical coil system
and lined with non-mesh geotextile cloth that folds up like
flat-pack furniture. In the field, it's unfolded and filled by a
standard front loader or backhoe, with any dirt or rubble that's
locally available and tamped down hard. By lining these baskets up
and stacking them like building blocks, army engineers can build a
wall ten times faster than sandbagging, with fewer people. The
result is an earthen wall thick enough to shrug off a rocket
propelled grenade.
The Standard Technical Specifications from SX 1 to SX 19
| Welded Sand Filled Barrier for Flood Control Bastion |
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |
The Application for Defensive Bastions
Flood Control
1. Flood Prevention Barrier
2. Permanent or Semi-permanent Dike
3. Flood Control Retaining Wall
4. Protection Engineering of Seaside Area
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Welded Defensive Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured
from Galvanised coated, welded mesh. The mesh must be made of rust
protected alloy materials.The Wire Mesh must have a guaranteed life
of not less than 5 years while exposed to environment and 10 years
when in store.
2. Collapsible

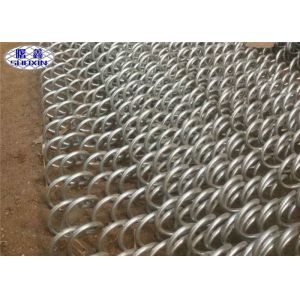

Mesh Panel is joint by spring which is a circle, Mesh Panle can
turn 360° unobstructed, so, when shiping the goods, it is
collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a
strong Protection wall.
