| Brand Name : | TAYOR |
| Model Number : | CNCTG1530 |
| Certification : | CCC/ISO |
| Price : | USD 15000-25000 |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 50set a month |
| Delivery Time : | 30day s |

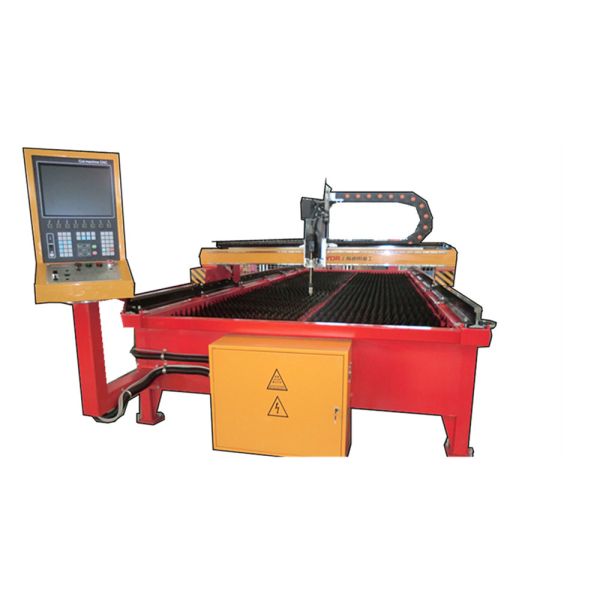

Used TAYOR plasma CNC cutting table machine good condition second hand plasma cutting machine
| Item | Descriptions | Specification |
| Machine Body | Table Width (mm) | 2000 |
| Rail length (mm) | 4000 | |
| Effective Cutting Area(mm) | 1500x3000 | |
| Drive motor | Dual-drive / Panasonic AC servo motor | |
| Max traveling speed(mm/min) | 9000mm/min | |
| Flame Torch | Flame Cutting Torch Number | 1 Set Flame torch |
| Flame Cutting Thickness(mm) | 6-50mm | |
| Flame Torch Height Sensor | Height sensor | |
| Flame Cutting Speed(mm/min) | 50-800mm/min | |
| Flame cutting Gas Pressure | Oxygen:0.5-0.8MPa Flow:1.0M3/Min Fuel Gas :Propane or Acetylene Pressure:0.05-0.1MPa | |
| Plasma Torch | Plasma Cutting Torch Number | 1 Set Plasma torch |
| Plasma Torch Height Sensor | TAYOR plasma arc Sensor THC | |
| Plasma Torch Anti-Collision Holder | TAYOR | |
| Plasma Cutting Speed(mm/min) | 50-4500mm/min | |
| Model | Hypertherm Powremax105 | |
| Plasma Cutting Thickness(mm) | 1-25mm(carbon steel) | |
| Country of origin | Made in USA | |
| Max current output | 105A | |
| Power | 15KW | |
| Duty cycle | 80% | |
| Plasma Cutting Gas Request | Dry and Oil free compressed | |
| CNC Controller | TAYOR | |
| Nest Software | Nest Software | FASTCAM (Australia) |
| Electrical Components | PLC | DELTA TAIWAN |
| Electric Components | Schneider |
Accuracy
| Positioning Accuracy | ±0.5mm/1000mm |
| Repeatability | ±0.5mm/1000mm |
| Speed setting error | ≤±5% |
| THC accuracy | ≤±0.5mm |
| Length of a side Error(mm) | ±0.5mm |
| Base Point Return Error | ±0.4mm |
| Intersection point Error | ±0.5mm |
| Lineation forward-reverse Error | ±0.2mm |


|   |
