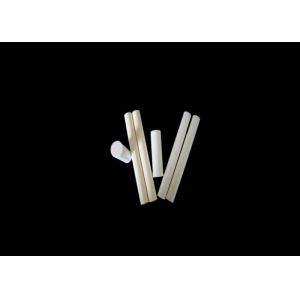

    High Strength 95 % Aluminum Oxide Ceramic Bar High Precision Machining

    Ask Lasest Price
    Brand Name : KAMTAI
    Model Number : KTJC14-35
    Certification : ISO 9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability : 20000PCS/ MONTH
    Delivery Time : 25 DAYS AFTER PAYMENT
    • Product Details
    • Company Profile

    High Strength 95 % Aluminum Oxide Ceramic Bar High Precision Machining

    High Strength 95 % Aluminum Oxide Ceramic Bar High Precision Machining


    1. Name: Alumina Ceramics
    2. Size: as customers' drawing
    3. Al2O3 Content: 95% Alumina
    4. Color: white or ivory
    5. Working Temperature: 1600-1700 degree
    6. Feature: high mechanical strength, good insulation&high wear resistant, etc.
    7. Application: for refractory furnace or Kiln, electron vacuum decices, spaceflights, pharmaceutical engineerings Or Other Mechanical Applications

    Specification :

    We manufactures custom technical ceramics, covering a wide range of customer requirements .We make use of several forming and machining techniques to process components made from alumina Ceramics, This material may be used in applications that require High elevated temperatures ,High dielectric strength, excellent electrical resistance . wear or corrosion resistance .high temperature capability .High Electrical insulation.


    Technical Parameter
    Naterial
    Unit
    95% Alumina Ceramic
    96% Alumina Ceramic
    99% Alumina Ceramic
    99.7% Alumina Ceramic
    Density
    g/cm³
    3.65
    3.7
    3.85
    3.85
    Flexural Strength
    Mpa
    290
    300
    350
    350
    Compressive Strength
    Mpa
    3300
    3400
    3600
    3600
    Modulus of Elasticity
    Gpa
    340
    350
    380
    380
    Impact Resistance
    MPam1/2
    3.9
    4.0
    5.0
    5.0
    Weibull Modulus
    M
    10
    10
    11
    11
    Vickers Hardulus
    HV0.5
    1800
    1850
    1900
    2000
    Thermal Expansion Coefficient
    10-6K-1
    5.0-8.3
    5.0-8.3
    5.4-8.3
    5.4-8.3
    Thermal Conductivity
    W/Mk
    23
    24
    27
    28
    Thermal Shock Resistance
    △T℃
    250
    250
    250
    280
    Maximum Use Temperature
    1600
    1650
    1700
    1700
    Volume Resistivity at 20℃
    Ω
    ≥10^14
    ≥10^14
    ≥10^14
    ≥10^15
    Dielectric Strength
    KV/mm
    20
    20
    25
    30
    Dielectric Constant
    εr
    10
    10
    10
    10

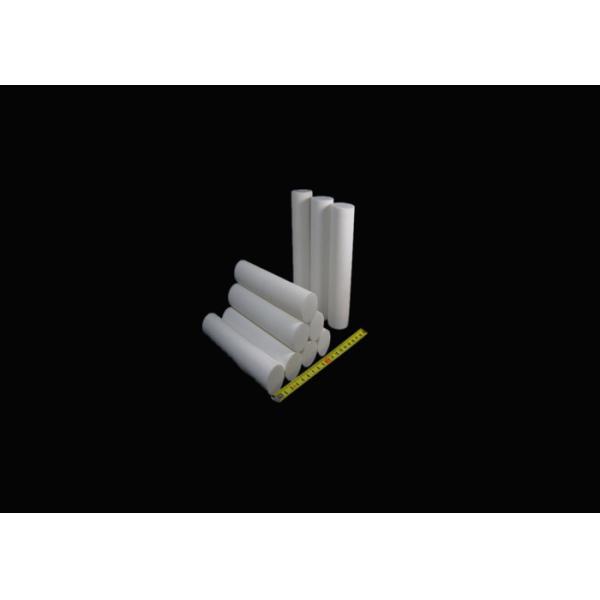

    Quality High Strength 95 % Aluminum Oxide Ceramic Bar High Precision Machining for sale
