    Industrial Smoke Absorber Laser Fume Extraction Systems For Soldering Station

    Ask Lasest Price
    Brand Name : Riselaser
    Model Number : RL-HBC350
    Certification : CE,ISO
    Price : negotiation
    Payment Terms : D/A, T/T, L/C
    Supply Ability : 2000 units/ month
    Delivery Time : 7- 12 Work Days
    • Product Details
    • Company Profile

    Industrial Smoke Absorber Laser Fume Extraction Systems For Soldering Station


    Industrial Smoke Absorber for Soldering Station , Laser Fume Extraction System


    RL-HBC series products are characterized by beauty, safety and wide applicability. They are specially designed for fine dust in electrical production line and dust by laser marking. They are equipped with brushless electric motor, steel shell and independent switch control.It is a small equipment with ultra-high cost performance, electrical production line, laser marking, and non-metal material dust carving.

    Advantage


    • Top design suction port, multi-stage filtering, high filtering precision

    • High performance brushless fan with high air volume, high negative pressure, stable operation and low fault rate

    • By manually adjusting the button, the motor can be stepless speed regulation to increase or decrease the negative pressure and air volume

    • Filter modular structure, easy and quick replacement

    • Front square bag filter

    • Standard appearance color: sand white + sand black


    Technical parameter

    Model

    RL-HBC200

    RL-HBC350

    RL-HBC500

    Power (W)

    200

    350

    500

    Power Supply (V/Hz)

    220/50

    220/50

    220/50

    Maximum Flow (m3/h)

    360420

    500

    Suction Diameter (mm)

    50/75

    50/75

    50/75
    Noise dB (A)65±270±272±2
    Dimension (mm)315*430*590315*430*590350*450*680
    Weight (kg)525885



    Characteristics

    • No brush fan, low noise running


    In terms of power system, single-phase brushless motor is adopted with strong suction, and the 220V power supply can be conveniently connected, and stepless speed regulation can be realized to select air quantity according to the working condition.
    One of the biggest advantages of brushless fan is low noise operation, smooth operation and low noise.Through our special design, the air pressure and air volume parameters are kept at a high level, and the maximum negative pressure can reach 10kpa.
    The alloy material of the wind wheel, the unique dynamic balance correction technology, makes the wind wheel run more stable and reliable, and the air intake is larger.

    • Control circuit, safe and reliable


    The electrical system adopts the advanced modular circuit board specially designed by our company to realize PWM stepless speed regulation function.Key components adopt imported brands and materials to fully guarantee the safety and reliability of operation.
    In addition, there will be an audible alarm when the filter is detected to be blocked.Remind the user to clean the dust or change the filter.



    • Combination filtration, purification thoroughly

    Four levels of filtration are used in the filtration system.The primary pocket filter can block the big particle dust inside the cloth bag and clean easily.
    Secondary filters, using high efficiency filters, ensure that harmful soot is cleaned more thoroughly.The dust purification rate for the equivalent diameter of 0.3 micron was up to 99.9%.
    The use of activated carbon filter with catalyst in the three - or four-layer filter can adsorb and purify air of a variety of odors and toxic and harmful substances.

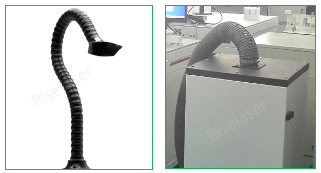

    • Universal suction arm or suction hose


    Top suction system is adopted for the suction system:
    The machine can be equipped with 1.4m universal smoking arm, which can be changed and positioned at will (the length can be adjusted according to the customer's requirements without external support).Adopting square smoke hood, the shape conforms to the aerodynamics principle, smoking area is larger and the efficiency is higher.
    The square bar suction hose can also be configured to connect with the client suction port.



    Typical Applications
