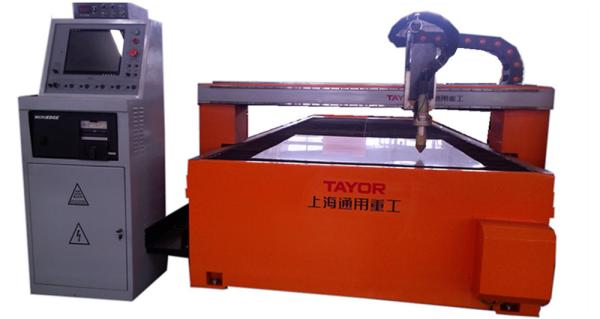

    High Speed Cnc Plasma Cutting System , 1.5 X 3m High Precision Plasma Table Kit

    Ask Lasest Price
    Brand Name : TAYOR
    Model Number : CNCTMG1530
    Certification : CCC/ISO
    Price : USD 30000-40000
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 50set a month
    Delivery Time : 30day s
    • Product Details
    • Company Profile

    High Speed Cnc Plasma Cutting System , 1.5 X 3m High Precision Plasma Table Kit


    1.5X3m CNC plasma cutting machine high speed high precision plasma cutter


    ItemDescriptionsSpecification
    Machine BodyTable Width (mm)2000
    Rail length (mm)4000
    Effective Cutting Area(mm)1500x3000
    Drive motorDual-drive / Panasonic AC servo motor
    Max traveling speed(mm/min)9000mm/min
    Flame TorchFlame Cutting Torch Number1 Set Flame torch
    Flame Cutting Thickness(mm)6-50mm
    Flame Torch Height SensorHeight sensor
    Flame Cutting Speed(mm/min)50-800mm/min
    Flame cutting Gas Pressure

    Oxygen:0.5-0.8MPa Flow:1.0M3/Min

    Fuel Gas :Propane or Acetylene Pressure:0.05-0.1MPa

    Plasma TorchPlasma Cutting Torch Number1 Set Plasma torch
    Plasma Torch Height SensorTAYOR plasma arc Sensor THC
    Plasma Torch Anti-Collision HolderTAYOR
    Plasma Cutting Speed(mm/min)50-4500mm/min
    ModelHypertherm Powremax85
    Plasma Cutting Thickness(mm)1-15mm(carbon steel)
    Country of originMade in USA
    Max current output85A
    Power15KW
    Duty cycle80%
    Plasma Cutting Gas RequestDry and Oil free compressed
    CNC ControllerTAYOR
    Nest SoftwareNest SoftwareFASTCAM (Australia)
    Electrical ComponentsPLCDELTA TAIWAN
    Electric ComponentsSchneider

    Accuracy

    Positioning Accuracy±0.5mm/1000mm
    Repeatability±0.5mm/1000mm
    Speed setting error≤±5%
    THC accuracy≤±0.5mm
    Length of a side Error(mm)±0.5mm
    Base Point Return Error±0.4mm
    Intersection point Error±0.5mm
    Lineation forward-reverse Error±0.2mm
